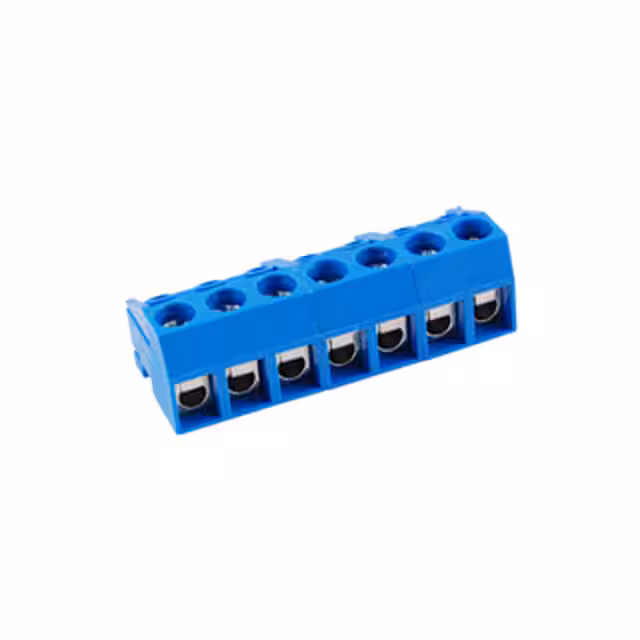

25-E1600-07

Manufacturer :

NTE Electronics, Inc.

Product Category :

Headers, Plugs and Sockets

Pitch :

5.00 mm

Housing Material :

-

Mounting Type :

Free Hanging (In-Line)

Type :

Plug for Unshrouded Header

Package :

Bag

Series :

25-E1600

Torque - Screw :

0.31 Nm (2.7 Lb-In)

Current - IEC :

-

Number of Positions :

7

Package Quantity :

1

Material Flammability Rating :

-

Operating Temperature :

-

Wire Gauge or Range - mm² :

-

Contact Tail Length :

-

Header Orientation :

-

Screw Size :

M2.5

Color :

Blue

Wire Strip Length :

5-6mm

Termination Style :

Screw

Voltage - UL :

300 V

Product Status :

Active

Features :

-

Manufacturer :

NTE Electronics

Plug Wire Entry :

180°

Wire Gauge or Range - AWG :

14-22 AWG

Positions Per Level :

7

Contact Material :

-

Current - UL :

7 A

Ingress Protection :

-

Contact Mating Finish :

-

Voltage Rating :

300V

Number of Levels :

1

Insulation Height :

0.425 (10.80mm)
