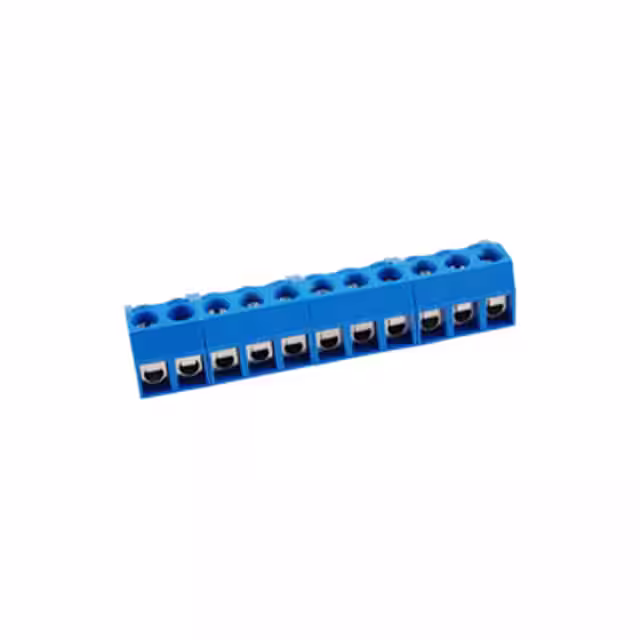

25-E1600-11

Manufacturer :

NTE Electronics, Inc.

Product Category :

Headers, Plugs and Sockets

Package :

Bag

Positions Per Level :

11

Material Flammability Rating :

-

Operating Temperature :

-

Current - UL :

7 A

Screw Size :

M2.5

Pitch :

0.197 (5.00mm)

Insulation Height :

0.425 (10.80mm)

Product Status :

Active

Current - IEC :

-

Package Quantity :

1

Wire Gauge or Range - mm² :

-

Contact Mating Finish :

-

Plug Wire Entry :

180°

Contact Tail Length :

-

Series :

25-E1600

Manufacturer :

NTE Electronics

Number of Positions :

11

Wire Gauge or Range - AWG :

14-22 AWG

Torque - Screw :

0.31 Nm (2.7 Lb-In)

Number of Levels :

1

Header Orientation :

-

Housing Material :

-

Termination Style :

Screw

Color :

Blue

Voltage - UL :

300 V

Features :

-

Ingress Protection :

-

Type :

Plug for Unshrouded Header

Contact Material :

-

Mounting Type :

Free Hanging (In-Line)

Wire Strip Length :

5-6mm
