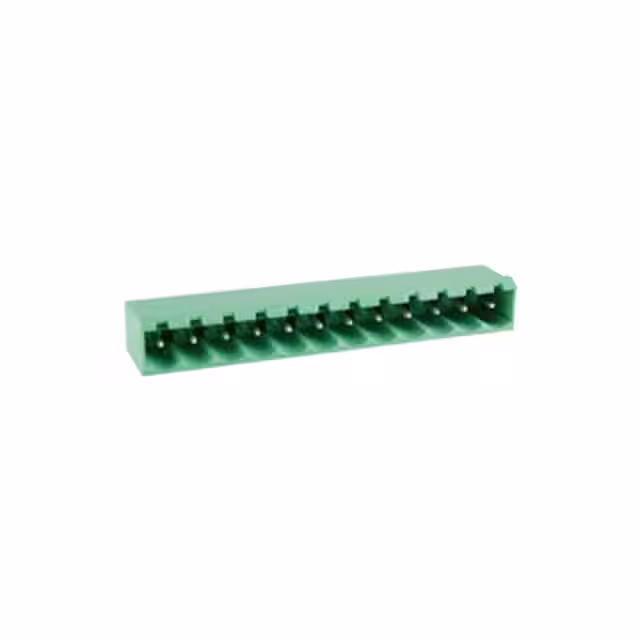

25-E900-12

Manufacturer :

NTE Electronics, Inc.

Product Category :

Headers, Plugs and Sockets

Type :

Header, Male Pins, Shrouded (4 Side)

Contact Tail Length :

0.157 (4.00mm)

Torque - Screw :

-

Screw Size :

-

Color :

Green

Pin Length :

4 MilliMeters

Voltage - UL :

300 V

Termination Style :

Solder

Approvals :

cURus;CSA

Wire Strip Length :

-

Voltage Rating :

300V

Current - IEC :

-

Plug Wire Entry :

-

Insulation Height :

0.472 (12.00mm)

Housing Material :

-

Ingress Protection :

-

Contact Material :

-

Number of Poles :

12

RoHS :

No

Mounting Type :

PCB Mount

Wire Gauge or Range - AWG :

-

Number of Levels :

1

Contact Mating Finish :

-

Current - UL :

15 A

Operating Temperature :

-

Package Quantity :

1

Features :

-

Wire Gauge or Range - mm² :

-

Connection Type :

Screw Clamp

Series :

25-E900

Pitch :

5.00 mm

Number of Positions :

12

Material Flammability Rating :

-

Manufacturer :

NTE Electronics

Package :

Bag

Header Orientation :

Vertical

Product Status :

Active

Positions Per Level :

12
