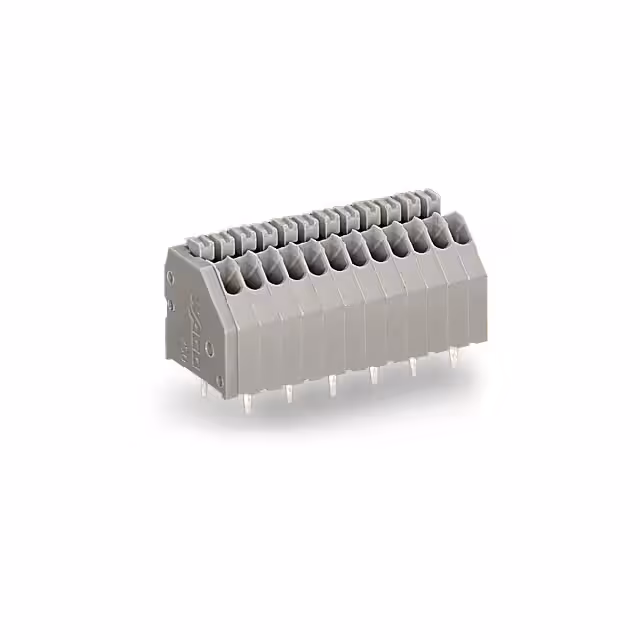

250-404

Manufacturer :

WAGO

Product Category :

Wire to Board

Series :

250

Wire Gauge :

20-24 AWG

Connectable conductor cross section fine-strand without cable end sleeve :

0.2 - 0.5

AWG max. :

20

Cross section (inflexible) (max.) :

0.50mm²

Operating Temperature :

-60°C ~ 105°C

Package :

Box

Contact Plating :

Tin

Pin Length :

3.6 MilliMeters

Pins per row :

4

Housing Color :

Grey

Stripping length (max.) :

9mm

Clamp Material - Plating :

COPPER ALLOY

Number of Contacts :

4

Connection :

Spring

Wire protection :

yes

Mating Orientation :

45° (135°) Angle with Board

Voltage :

300 V

Content :

1pc(s)

Actuation direction :

At an angle (to the PCB)

No. of rows :

1

Industrial packaging :

yes

Temperature Range :

-76 to 221 Degrees F

Nominal voltage (details) :

160V

Inflammability class of insulation material according to with UL94 :

V0

Rated current In :

4

Type :

1 solder pin/staggered pole

Cross section (inflexible) (min.) :

0.14mm²

Termination :

Spring Clamp

Nominal current :

2A

Manufacturer :

Wago

AWG (min.) :

24

Gender :

FEMALE

Screw Thread :

-

Packaging type :

Other

Features :

+ CAGE CLAMP®

Current :

5 A

Rated Voltage :

160V

Composition :

Polyamide

Manufacturer part # :

250-404

Color :

Gray

Rated Current :

4A

Pollution degree :

2

Type of fastening :

Solder

Cross section (flexible) (max.) :

0.50mm²

Number of Ways :

4

Width :

16.70mm

Number of Rows :

1

Over voltage category :

III

Screw Material - Plating :

-

RoHS :

yes

CS :

2.50mm

Nominal current - rounded value :

2A

Wire Termination :

Screwless - Push Button Clamp

Height :

12.00mm

Positions Per Level :

4

Contact Material - Plating :

Electrolytic Copper - Tin Plated

Approvals :

CSA;UL

Number of Levels :

1

Product Status :

Active

Current Rating :

2 (CSA) A, 4 (IEC/EN 60664-1) A, 5 (UL) A

Pitch :

2.5 mm

Cross section (flexible) (min.) :

0.20mm²

Connectable conductor cross section multi-wired :

0.2 - 0.5

Enclosure material :

Polyamide

Connection Type :

Spring Clamp

Wire Size :

24 → 20 AWG

Number of Pins :

4

Lead Pitch :

2.5 mm

Connectable conductor cross section solid-core :

0.14 - 0.5

Nominal voltage :

160V

Rated surge voltage :

2.5

Number of Poles :

4

Wire/Cable Gauge :

24 AWG

Termination Method :

Push-In Cage Clamp

Housing Material :

Nylon

REACH SVHC :

No SVHC

Voltage Rating :

320 V

Flammability Rating :

UL94 V-0

Mounting Type :

PCB Mount

Contact Material :

COPPER ALLOY

Voltage Rating (AC) :

250 V

Torque - Screw :

-

Length :

11.50mm

Min. stripping length :

6mm

Nominal current (details) :

2A
