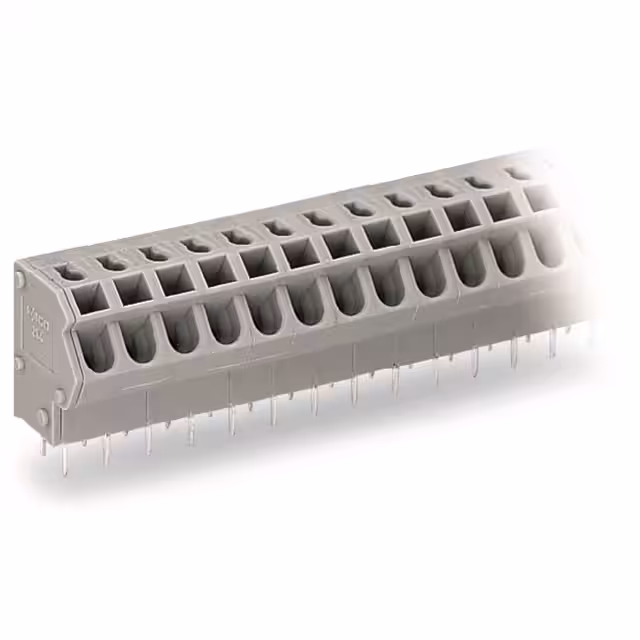

254-458

Manufacturer :

WAGO

Product Category :

Wire to Board

Cross section (flexible) (max.) :

1.50mm²

Composition :

Polyamide

Rated surge voltage :

4

Type of fastening :

Solder

Nominal voltage :

320V

Height :

19.70mm

Pollution degree :

2

Features :

+ PUSH WIRE®

Wire Gauge :

12-20 AWG

CS :

5mm,5.08mm

Connection :

Spring-loaded terminal,Print

Mating Orientation :

45° (135°) Angle with Board

Over voltage category :

III

Actuation direction :

Perpendicular (to the PCB)

Approvals :

CSA, UR

AWG (min.) :

20

Wire protection :

yes

Connection Type :

Spring Clamp

Screw Material - Plating :

-

Number of Poles :

8

Torque - Screw :

-

Voltage :

300 V

Pins per row :

8

Temperature Range :

-76-221 °F

Rated current In :

24

Cross section (inflexible) (min.) :

0.50mm²

Current :

10 A

Clamp Material - Plating :

Steel - Nickel Plated

Operating Temperature :

-60°C ~ 105°C

Manufacturer part # :

254-458

Package :

Box

Product Status :

Active

Content :

100pc(s)

Contact Material - Plating :

Electrolytic Copper - Tin Plated

Industrial packaging :

yes

Housing Material :

Polyamide (PA66), Nylon 6/6

Packaging type :

Other

Min. stripping length :

8mm

Series :

254

Wire Termination :

Screwless - Leg Spring, Push-In Spring

Width :

41.50mm

Nominal current - rounded value :

24A

Pitch :

0.200 (5.08mm)

Connectable conductor cross section solid-core :

0.5 - 2.5

AWG max. :

12

Length :

13.50mm

Stripping length (max.) :

6mm

Cross section (inflexible) (max.) :

2.50mm²

Cross section (flexible) (min.) :

0.50mm²

Mounting Type :

PCB Mount

Color :

Gray

Type :

254-458

Enclosure material :

Polyamide

RoHS :

yes

Screw Thread :

-

Number of Levels :

1

Pin Length :

4 mm

Positions Per Level :

8

Inflammability class of insulation material according to with UL94 :

V0

Connectable conductor cross section fine-strand with cable end sleeve :

0.5 - 1.5

Nominal current :

24A

Manufacturer :

Wago
