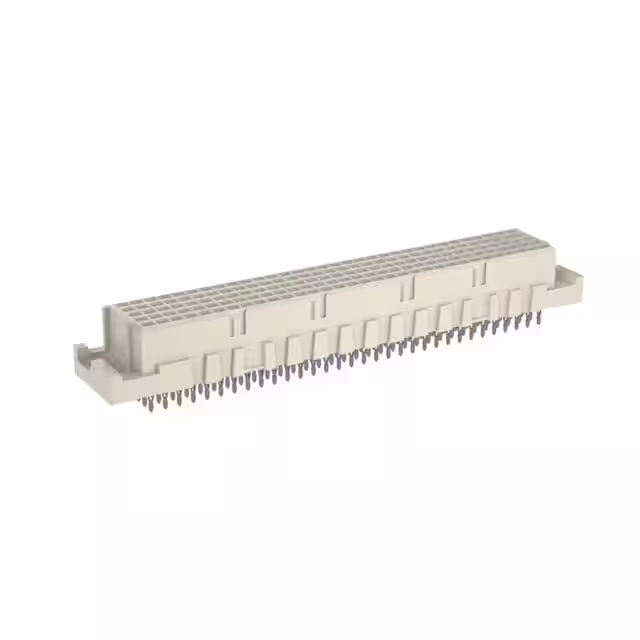

254123

Manufacturer :

TE Connectivity

Product Category :

DIN 41612

IEC Conformance :

No

Manufacturer :

ERNI

Total Number of Contacts :

160

Number Of PCB Rows :

5

MIL Conformance :

No

Mating Contact Pitch :

0.1 inch

Contact Gender :

FEMALE

Body Breadth :

0.618 inch

Connector Type :

BOARD EURO CONNECTOR

Contact Material :

NOT SPECIFIED

Product Height (mm) :

11.6(mm)

Reliability :

COMMERCIAL

Mounting Style :

Through Hole

Filter Feature :

No

PCB Contact Row Spacing :

2.54 mm

Contact Resistance :

15 mΩ

Body Depth :

0.457 inch

Reference Standard :

UL, CSA

Mixed Contacts :

No

Body/Shell Style :

PLUG

Terminal Length :

0.157 inch

Reach Compliance Code :

Compliant

Mounting Option 1 :

LOCKING

Option :

GENERAL PURPOSE

Polarization Key :

POLARIZED HOUSING

Termination Method :

Press Fit

Type :

DIN 41612

Body Orientation :

Straight

Mounting Type :

BOARD

Pbfree Code :

yes

Pitch (mm) :

2.54(mm)

PCB Contact Pattern :

RECTANGULAR

Additional Feature :

RoHS Compliant

DIN Conformance :

yes

Number of Contact Rows :

5

Gender :

F

Operating Temp Range :

-55C to 125C

Dielectric Withstanding Voltage :

2200VAC V

Number of Contacts :

160(POS)

HTS Code :

8536.69.40.40

Mating Contact Row Spacing :

0.1 inch

ECCN Code :

EAR99

Contact Style :

SQ PIN-SKT

Name of Rows Loaded :

A,B,C,D,E

Product Length (mm) :

95(mm)

Terminal Pitch :

2.54 mm

Subcategory :

Headers and Edge Type Connectors

Rated Current (Signal) :

5.5 A

Durability :

400 Cycles

Insulation Resistance :

10000000000 Ω

Insertion Force-Max :

.5004 N

Termination Type :

Press Fit

Product Depth (mm) :

15.7(mm)
