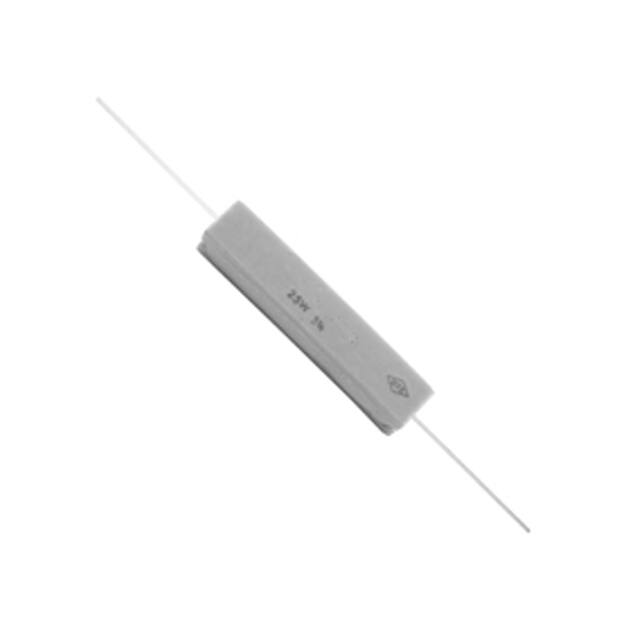

25W2D2

Manufacturer :

NTE Electronics, Inc.

Product Category :

Through Hole Resistors

Product Height (mm) :

12.5(mm)

Height - Seated (Max) :

-

Product Depth (mm) :

12.5(mm)

Product Status :

Active

Reach Compliance Code :

Unknown

Size Code :

49

Tolerance (+ or -) :

5%

Working Voltage :

800 V

Series :

-

Tolerance :

±5%

Size / Dimension :

0.492" Square x 2.50" L (12.50mm x 63.50mm)

Power Rating(s) :

25(W)

Subcategory :

Fixed Resistors

Supplier Device Package :

Axial

ECCN Code :

EAR99

Type :

Wirewound

Lead Spacing (nom) :

Not Required(mm)

Termination Style :

Axial

Composition :

Wirewound

Package Height :

12.5 mm

Product Diameter (mm) :

Not Required(mm)

Package Length :

63.5 mm

Number of Terminals :

2

Lead Length :

1.5

Military Standard :

Not Required

Power (Watts) :

25W

Failure Rate :

-

Operating Temp Range :

-55C to 155C

Wattage :

25

Rated Power Dissipation (P) :

25 W

Package Type :

Axial Lead

Package :

Bag

Product Length (mm) :

63.5(mm)

Terminal Type :

Axial Leads

Resistor Type :

FIXED RESISTOR

Package Width :

12.5 mm

Package / Case :

Axial

Case Style :

Molded

Temperature Coefficient :

±300ppm/°C

Features :

-

Number of Terminations :

2

Flame-Proof Support :

No

HTS Code :

8533.21.00.80

Operating Temperature :

-55°C ~ 155°C

Resistance :

2.2 Ohms

Manufacturer :

NTE Electronics

Construction :

RECTANGULAR

Technology :

Wire Wound

Lead Diameter :

0.04
