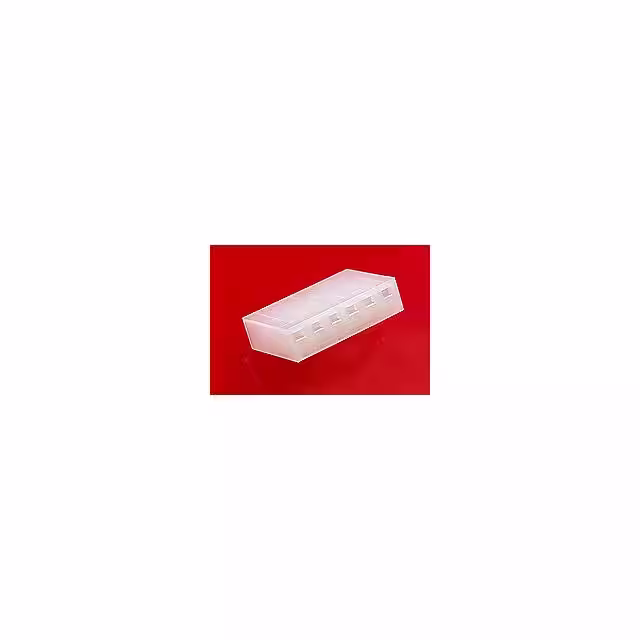

26-03-3091

Manufacturer :

Molex

Product Category :

Rectangular Connector Housings

Mount :

CABLE

Product Depth (mm) :

6.6(mm)

Pbfree Code :

yes

Product Length (mm) :

36.47(mm)

Product :

Wire Housings

Min Operating Temperature :

0 °C

RoHS :

Details

Contact Type :

-

Total Number of Contacts :

9

Glow Wire Compliant :

Non-Compliant

UL Flammability Code :

94V-2

Color :

Gray

HTS Code :

8536.69.40.40

Housing Gender :

FEMALE

Reference Standard :

UL

Contact Material :

-

Halogen Free :

Low Halogen

Mounting Style :

Cable Mount / Free Hanging

Termination :

Crimp

Tradename :

KK

Number of Contacts :

9(POS)

Body/Shell Style :

PLUG

Mounting Type :

CABLE

Mounting Angle :

Straight

Number of Contact Rows :

1

Reach Compliance Code :

Compliant

DIN Conformance :

No

ECCN Code :

EAR99

Additional Feature :

POLARISED

Termination Type :

Crimp

Orientation :

Straight

Durability :

25 Cycles

Current Rating (Max) :

7/Contact(A)

Contact Resistance :

6 mΩ

Number of Rows :

1 Row

IEC Conformance :

No

Body Depth :

0.67 inch

Housing Color :

Natural

Max Operating Temperature :

75 °C

Series :

*

Insertion Force-Max :

9.7856 N

Voltage Rating Max :

250VAC

Minimum Operating Temperature :

- 40 C

Mounting Option 1 :

LOCKING

MIL Conformance :

No

Contact Gender :

Socket (Female)

Body Breadth :

0.26 inch

Lifecycle Status :

Production (Last Updated: 2 years ago)

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Reliability :

COMMERCIAL

Panel Mount :

No

Max Voltage Rating (AC) :

250 V

Product Status :

Active

Connector Type :

BOARD CONNECTOR

Flammability Rating :

UL 94 V-2

Product Height (mm) :

17(mm)

Insulation Resistance :

50000000000 Ω

Termination Style :

Crimp

Pitch :

3.96 mm

Pitch (mm) :

3.96(mm)

Subcategory :

Headers and Wire Housings

Contact Style :

SQ PIN-SKT

Type :

Housing

Maximum Operating Temperature :

+ 80 C

Current Rating :

-

Manufacturer Lifecycle Status :

ACTIVE (Last Updated: 2 years ago)

Packaging :

Bag

Manufacturer :

Molex

Product Category :

Headers and Wire Housings

Package :

Box

Number of Positions :

9 Position

Product Type :

Headers and Wire Housings

Dielectric Withstanding Voltage :

1000VAC V

Mixed Contacts :

No

Operating Temp Range :

0C to 75C

Country of Origin :

US

Insulator Color :

Natural

Option :

GENERAL PURPOSE

Filter Feature :

No

Application :

Power

Body Orientation :

Straight

Gender :

Receptacle

Housing Material :

Nylon

Brand :

Molex
