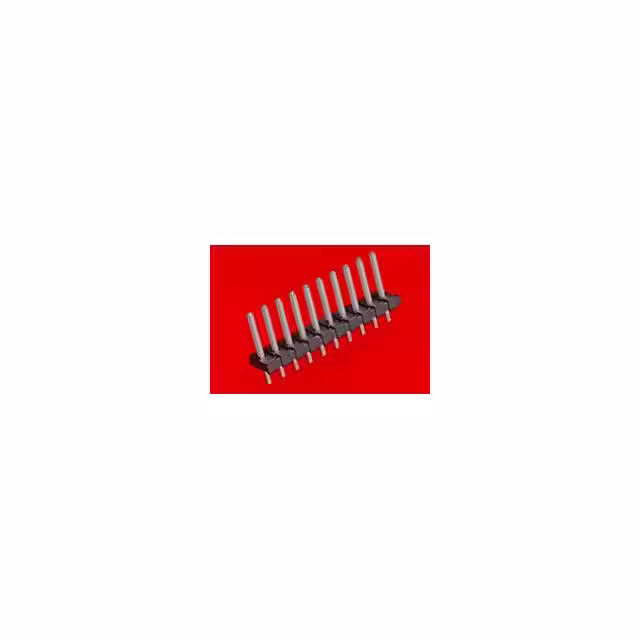

26-48-2093

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Mixed Contacts :

No

Voltage Rating Max :

250V

Reference Standard :

UL, CSA

Pitch :

3.96 mm

Subcategory :

Headers and Wire Housings

Mounting Style :

Through Hole

Contact Style :

SQ PIN-SKT

Mounting Type :

BOARD

Gender :

HDR

Product Depth (mm) :

7.62(mm)

Operating Temp Range :

-40C to 80C

Reach Compliance Code :

Compliant

Contact Plating :

Gold Over Nickel

Body/Shell Style :

Receptacle

Number of Contact Rows :

1

Product :

Headers

Mounting Angle :

Straight

Contact Resistance Max :

10(mohm)

Type :

Unshrouded Header

Product Status :

Active

Flammability Rating :

UL 94 V-0

Insulator Color :

Black

Housing Material :

Polyester

Product Type :

Headers and Wire Housings

MIL Conformance :

No

Series :

*

Body Breadth :

0.3 inch

Polarization Key :

HOUSING SIDE

Reliability :

COMMERCIAL

Mating Contact Pitch :

0.156 inch

Termination Style :

Solder Pin

Plating Thickness :

20u inch

HTS Code :

8536.69.40.40

Termination Type :

Solder

Product Height (mm) :

14.68(mm)

Number Of PCB Rows :

1

Contact Gender :

Pin (Male)

Withdrawl Force-Min :

1.112 N

Number of Contacts :

9(POS)

PCB Contact Pattern :

RECTANGULAR

Body Orientation :

Straight

Additional Feature :

POLARIZED

Connector Type :

BOARD CONNECTOR

Contact Pattern :

RECTANGULAR

Pbfree Code :

yes

DIN Conformance :

No

Current Rating (Max) :

5/Contact(A)

IEC Conformance :

No

Number of Positions :

9 Position

Insertion Force-Max :

6.672 N

Packaging :

Bulk

Contact Material :

Brass

Manufacturer :

Molex

Rated Current (Signal) :

7 A

Number of Rows :

1 Row

Filter Feature :

No

UL Flammability Code :

94V-0

Body Depth :

0.36 inch

Option :

GENERAL PURPOSE

Contact Resistance :

6 mΩ

ECCN Code :

EAR99

Pitch (mm) :

3.96(mm)

Insulation Resistance :

50000000000 Ω

Terminal Length :

0.172 inch

Dielectric Withstanding Voltage :

1500VAC V

Contact Finish Termination :

NOT SPECIFIED

Total Number of Contacts :

9

Product Length (mm) :

35.61(mm)

Package :

Bag

Termination Method :

Solder

Housing Color :

Black

Terminal Pitch :

3.96 mm
