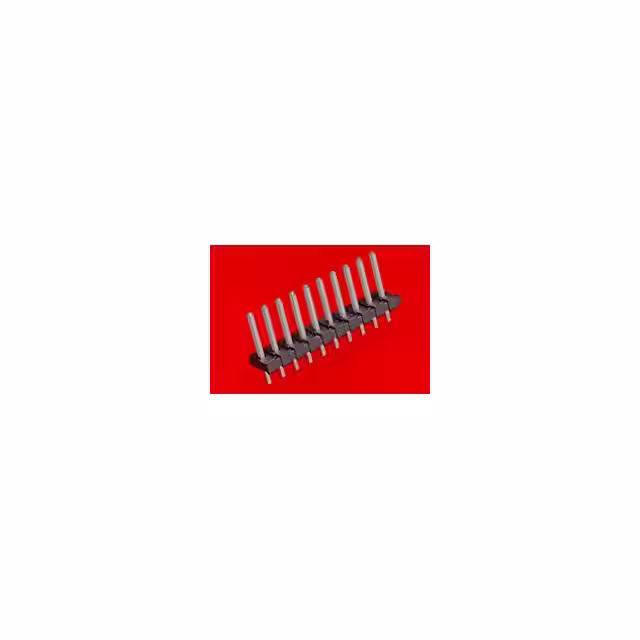

26-48-4095

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Termination Post Length :

3.18 mm

Maximum Operating Temperature :

+ 80 C

Product Height (mm) :

25.4(mm)

Package :

Box

Insulator Color :

Black

Type :

Unshrouded Header

Connector Type :

BOARD CONNECTOR

Additional Feature :

KK

Mating Contact Pitch :

0.156 inch

Dielectric Withstanding Voltage :

1500VAC V

Product Type :

Headers and Wire Housings

Mixed Contacts :

No

Termination Method :

Solder

Contact Pattern :

RECTANGULAR

Product Category :

Headers and Wire Housings

Body Depth :

0.128 inch

Base/Housing Material :

Polyester

Flammability Rating :

UL 94 V-0

Option :

GENERAL PURPOSE

UL Flammability Code :

94V-0

Contact Material :

Brass

Subcategory :

Headers and Wire Housings

Terminal Length :

0.125 inch

Housing Material :

Polyester

Number of Contacts :

9(POS)

Operating Temp Range :

-40C to 80C

Mating Post Length :

22.28 mm

Rated Current (Signal) :

7 A

Mounting Style :

Through Hole

Pitch (mm) :

3.96(mm)

DIN Conformance :

No

Mounting :

Through Hole

Application :

Power, Wire-to-Board

Mounting Type :

BOARD

Reach Compliance Code :

Compliant

Accessory Type :

-

Pitch :

3.9600 mm

Brand :

Molex

Filter Feature :

No

Contact Plating :

Tin

Termination Type :

Solder

Housing Color :

Black

Product :

Headers

Number of Positions :

9 Position

IEC Conformance :

No

MIL Conformance :

No

ECCN Code :

EAR99

Contact Resistance :

6 mΩ

Mounting Angle :

Straight

Current Rating :

4.5 A

Termination Style :

Solder Pin

Packaging :

Bag

Number Of PCB Rows :

1

Reliability :

COMMERCIAL

PCB Contact Pattern :

RECTANGULAR

Manufacturer :

Molex

Insertion Force-Max :

9.7856 N

Pbfree Code :

yes

Contact Style :

SQ PIN-SKT

Terminal Pitch :

3.96 mm

Contact Resistance Max :

10(mohm)

Contact Type :

-

Durability :

25 Cycles

Body Breadth :

0.3 inch

Plating Thickness :

200u inch

Product Length :

35.61 mm

Tradename :

KK

Body/Shell Style :

Receptacle

Total Number of Contacts :

9

Product Length (mm) :

35.61(mm)

Series :

41661

Number of Rows :

1 Row

Reference Standard :

UL, CSA

Minimum Operating Temperature :

- 40 C

Product Status :

Active

Voltage Rating :

250 V

RoHS :

Details

Contact Gender :

Pin (Male)

Number of Contact Rows :

1

Current Rating (Max) :

4.5/Contact(A)

Mating Information :

No

Withdrawl Force-Min :

3.753 N

Body Orientation :

Straight

Gender :

Header

Voltage Rating Max :

250V

Operating Temperature :

0 to 50 °C

HTS Code :

8536.69.40.40

Insulation Resistance :

50000000000 Ω

Product Depth (mm) :

7.62(mm)
