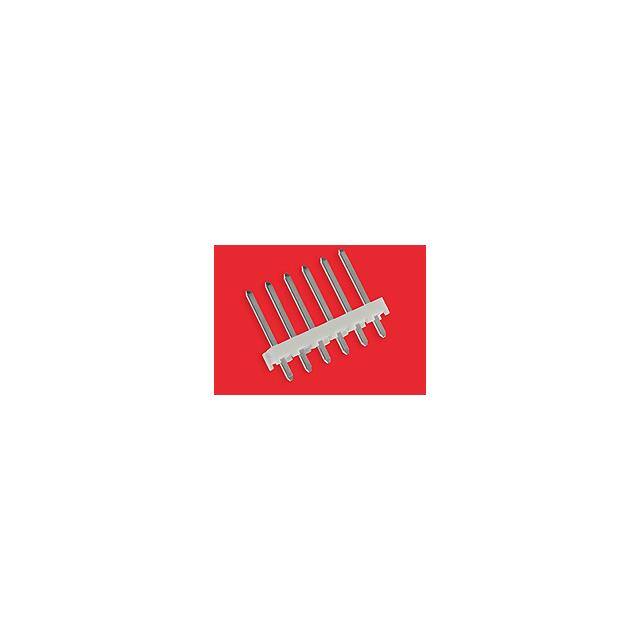

26-60-2140

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Number of Positions :

14 Position

Max Operating Temperature :

75 °C

Packaging :

Bag

Filter Feature :

No

Contact Plating :

TIN OVER COPPER

Body/Shell Style :

Receptacle

Flammability Rating :

UL 94 V-0

Depth :

6.35 mm

Mounting Option 1 :

LOCKING

Minimum Operating Temperature :

- 40 C

Product Height (mm) :

14.73(mm)

Number of Contacts :

14(POS)

Tradename :

KK

Additional Feature :

END-TO-END STACKABLE

Application :

Board-to-Board

Reliability :

COMMERCIAL

Package :

Box

Body Orientation :

Straight

Min Operating Temperature :

0 °C

Contact Material :

Brass

Type :

Unshrouded Header

Contact Style :

SQ PIN-SKT

Maximum Operating Temperature :

+ 80 C

Housing Color :

Natural

Accessory Type :

-

Contact Resistance :

10 MΩ

Manufacturer :

Molex

Mating Contact Pitch :

0.156 inch

Body Breadth :

0.25 inch

Termination Type :

Solder

Insulation Resistance :

1000000000 Ω

Mounting Type :

BOARD

Brand :

Molex

Voltage Rating Max :

250V

Insulator Color :

Natural

DIN Conformance :

No

Current Rating (Max) :

7/Contact(A)

Number of Contact Rows :

1

Pitch (mm) :

3.96(mm)

Termination Style :

Solder Pin

UL Flammability Code :

94V-0

Contact Resistance Max :

10(mohm)

Glow Wire Compliant :

Non-Compliant

Plating :

Tin

JESD-609 Code :

e3

Plating Thickness :

60u inch

Contact Type :

-

Number Of PCB Rows :

1

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Orientation :

Vertical

PCB Contact Pattern :

RECTANGULAR

ECCN Code :

EAR99

Option :

GENERAL PURPOSE

Contact Gender :

Pin (Male)

Current Rating :

7 A

Country of Origin :

US

Flammability :

94V-0

Termination Method :

Solder

Product Status :

Active

Voltage Rating :

250 V

Gender :

HDR

Durability :

25 Cycles

Reach Compliance Code :

Compliant

Subcategory :

Headers and Wire Housings

Product Length (mm) :

55.32(mm)

Housing Material :

Polyester

Terminal Length :

0.14 inch

Number of Circuits :

14

Manufacturer Lifecycle Status :

ACTIVE (Last Updated: 2 years ago)

Terminal Pitch :

3.96 mm

Body Depth :

0.13 inch

Product Category :

Headers and Wire Housings

Termination :

Solder

Number of Rows :

1 Row

Lifecycle Status :

Production (Last Updated: 2 years ago)

Contact Pattern :

RECTANGULAR

Product :

Headers

Pitch :

3.96 mm

Pbfree Code :

yes

Insertion Force-Max :

4.8928 N

Series :

41771

Mount :

Through Hole

Contact Finish Termination :

Tin (Sn)

HTS Code :

8536.69.40.40

Operating Temp Range :

-40C to 80C

Lead Pitch :

3.96 mm

IEC Conformance :

No

Reference Standard :

UL

Length :

55.32 mm

Mounting Angle :

Straight

Mixed Contacts :

No

Product Type :

Headers and Wire Housings

Mounting Style :

Through Hole

MIL Conformance :

No

Connector Type :

BOARD CONNECTOR

Total Number of Contacts :

14

RoHS :

Details

Withdrawl Force-Min :

.556 N

Product Depth (mm) :

6.35(mm)
