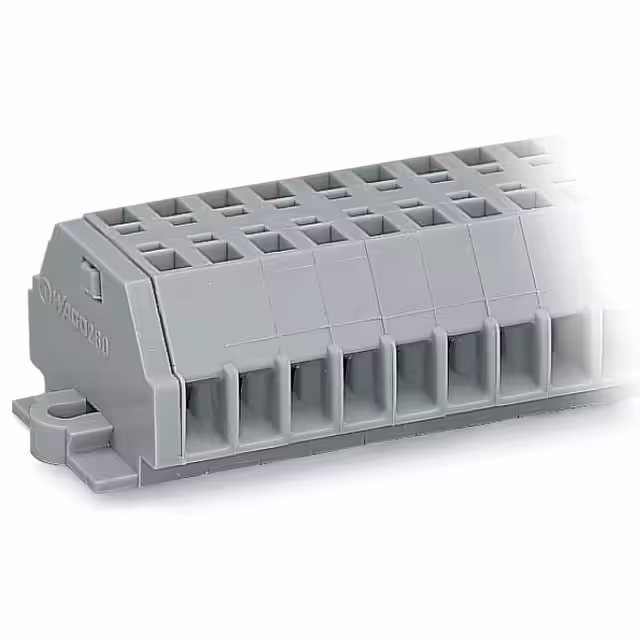

260-162

Manufacturer :

WAGO

Product Category :

Specialized

Configuration :

L

AWG max. :

16

Wire Gauge or Range - AWG :

16-28 AWG

ECCN (US) :

EAR99

Pins per row :

2

Type :

260-162

Rated current In :

18

Dim :

(W x H) 64.40 mm x 17 mm

Cross section (inflexible) (max.) :

1.50mm²

Number of Poles :

12

PPAP :

No

Color :

Gray

Connection Type :

Spring Clamp

Number of Positions :

24

Terminal - Width :

63.4mm

No. of rows :

12

Connectable conductor cross section multi-wired :

0.08 - 1.5

Voltage - IEC :

400 V

RoHS :

yes

Cross section (inflexible) (min.) :

0.08mm²

Cross section (flexible) (max.) :

1.50mm²

Manufacturer part # :

260-162

Connection :

Pull spring

Features :

+ latch lock base

Content :

25pc(s)

Height (Max) :

0.673 (17.09mm)

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Nominal current :

18A

Stripping Length :

8mm ~ 9mm

Clamp width :

5mm

Automotive :

No

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 1.5

Nominal voltage :

400V

Material Flammability Rating :

UL94 V-0

Series :

-

Approvals :

CSA, UR

Operating Temperature :

-

Product Status :

Active

Min. stripping length :

8mm

Current - IEC :

18 A

HTS :

8536.90.40.00

AWG (min.) :

28

Contamination level :

3

Package :

Box

Nominal current - rounded value :

18A

Inflammability class of insulation material according to with UL94 :

V0

Termination Style :

Push In, Spring

Industrial packaging :

yes

Number of Levels :

1

Housing Color :

Gray

EU RoHS :

Compliant

Width :

64.40mm

Stripping length (max.) :

9mm

Height :

17mm

Cross section (flexible) (min.) :

0.08mm²

Wire Gauge or Range - mm² :

0.08-1.5mm²

Connectable conductor cross section solid-core :

0.08 - 1.5

Manufacturer :

Wago

Transparent :

No

Mounting Type :

Snap-In Clip

Depth :

17.1

Length :

25
