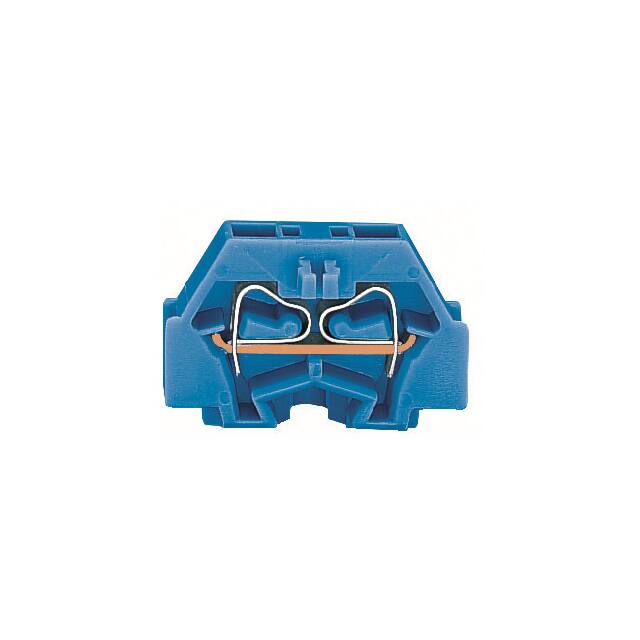

260-304

Manufacturer :

WAGO

Product Category :

Specialized

Stripping length (max.) :

9mm

Wire/Cable Gauge :

28 AWG

Number of Positions :

2

Body Orientation :

RIGHT ANGLE

Number of Contact Rows :

1

Housing Color :

Blue

No. of rows :

1

Voltage Rating :

400 V

Product Height (mm) :

17(mm)

Flammability Rating :

UL94 V-0

Color :

Blue

Operating Voltage (Max) :

400V

AWG max. :

16

Wire Gauge or Range - mm² :

0.08-1.5mm²

Number of Circuits :

1

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Terminal - Width :

5.0mm

Rated Voltage :

400V

Material Flammability Rating :

UL94 V-0

Manufacturer part # :

260-304

Rated Current :

18A

AWG (min.) :

28

Number of Contacts :

2(POS)

Packaging :

Box

Rad Hardened :

No

Type :

Standard Block

Wire Gauge :

16-28(AWG)

REACH SVHC :

No SVHC

Nominal current - rounded value :

18A

Operating Temperature :

-

Pins per row :

2

Voltage Rating (AC) :

400 V

Nominal current :

18A

Content :

1pc(s)

Configuration :

N

Cross section (flexible) (max.) :

1.50mm²

Features :

+ sleeve

Product Depth (mm) :

5(mm)

Dim :

(L x W x H) 25 x 5 x 17 mm

Current Rating (Max) :

18(A)

Nominal voltage :

400V

Termination Style :

Push In, Spring

Cross section (inflexible) (min.) :

0.08mm²

Cross section (flexible) (min.) :

0.08mm²

Height (Max) :

0.673 (17.09mm)

Number of Rows :

1

Clamp width :

5mm

Lead Pitch :

5 mm

Current - IEC :

18 A

Number of Pins :

2

Nominal current (details) :

18A

Mounting Type :

Flange, Snap-In

Mounting Style :

Panel

Manufacturer :

Wago

Stripping Length :

8mm ~ 9mm

Voltage - IEC :

400 V

Current Rating :

18 A

Cross section (inflexible) (max.) :

1.50mm²

Length :

25mm

Width :

5mm

Min. stripping length :

8mm

Wire Gauge or Range - AWG :

16-28 AWG

Height :

17mm

Pins :

2-conductors

Product Length (mm) :

25(mm)

Number of Levels :

1

RoHS :

yes

Connection :

-

Product Status :

Active
