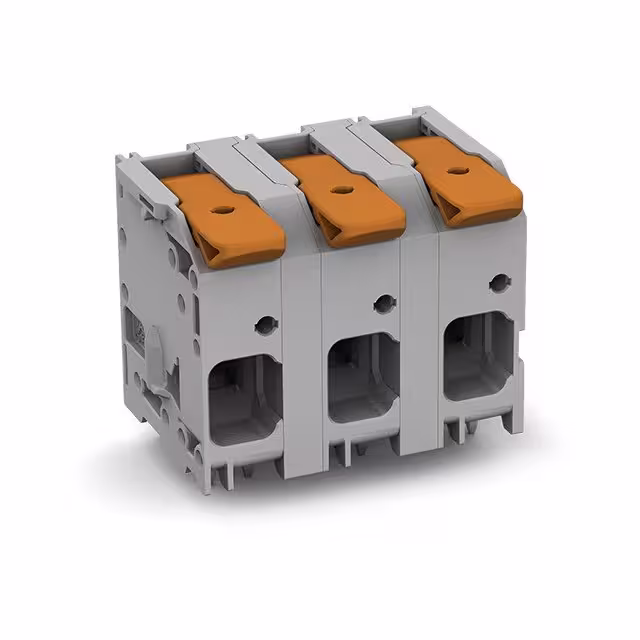

2616-1354

Manufacturer :

WAGO

Product Category :

Wire to Board

Operating Temperature :

-60°C ~ 105°C

Pollution degree :

2

Contact Material - Plating :

Electrolytic Copper - Tin Plated

Clamp Material - Plating :

Steel - Nickel Plated

Color :

Gray

Number of Poles :

4

Height :

33.2

Series :

-

Mating Orientation :

Horizontal with Board

Manufacturer :

Brady

Adhesive :

yes

Rated current In :

76

RoHS :

No

Temperature Range :

-76 to 221 Degrees F

Product Status :

Active

Background Color :

White

Screw Material - Plating :

-

Connectable conductor cross section multi-wired :

0.75 - 16

Mounting Type :

PCB Mount

Approvals :

UL;CSA

Rated Current :

76A

Rated surge voltage :

8

Voltage :

300 V

Connectable conductor cross section solid-core :

0.75 - 16

Torque - Screw :

-

Type of fastening :

Solder

Number of Levels :

1

Screw Thread :

-

Connectable conductor cross section fine-strand with cable end sleeve :

0.75 - 16

Inflammability class of insulation material according to with UL94 :

V0

Rated Voltage :

1kV

Pitch :

0.591 (15.00mm)

Features :

Lever Actuated

Composition :

Polyamide

Label Height :

1

Material Type :

Paper

Positions Per Level :

4

Connectable conductor cross section fine-strand without cable end sleeve :

0.75 - 25

Housing Material :

Polyamide (PA66), Nylon 6/6

Package :

Box

Label Width :

2

Wire Termination :

Screwless - Leg Spring, Push-In Spring

Application :

General and Industrial

Over voltage category :

III

Current :

78 A

Wire Gauge :

4-18 AWG
