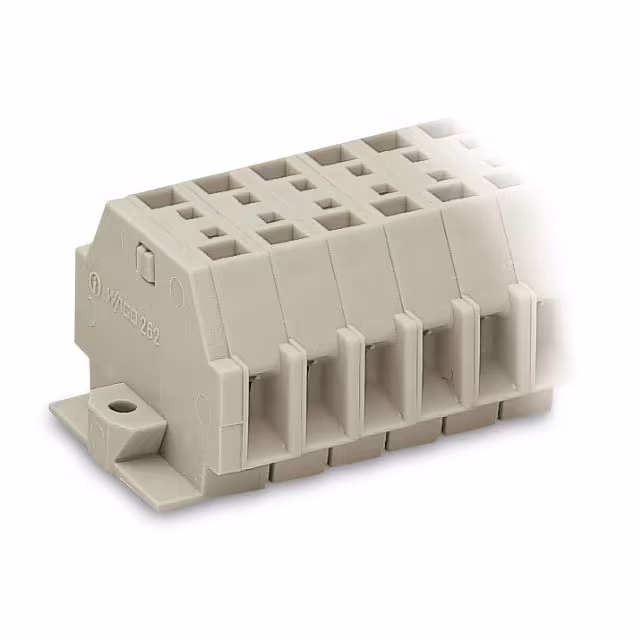

262-139

Manufacturer :

WAGO

Product Category :

Specialized

Cross section (flexible) (max.) :

4mm²

Length :

33.5

Product Status :

Active

Connection :

Pull spring

Wire Gauge or Range - mm² :

0.5-4mm²

ECCN (US) :

EAR99

Min. stripping length :

9mm

No. of rows :

9

Cross section (inflexible) (min.) :

0.50mm²

Connectable conductor cross section solid-core :

0.08 - 4

Mounting Type :

Surface Mount

Width :

77.50mm

Manufacturer :

Wago

HTS :

8536.90.40.00

Manufacturer part # :

262-139

Cross section (flexible) (min.) :

0.50mm²

Number of Positions :

18

Number of Poles :

9

Nominal current - rounded value :

23A

Configuration :

L

Package :

Box

Pins per row :

2

Connectable conductor cross section multi-wired :

0.08 - 4

Transparent :

No

Industrial packaging :

yes

PPAP :

No

Wire Gauge or Range - AWG :

12-20 AWG

Depth :

23.1

Material Flammability Rating :

UL94 V-0

Content :

50pc(s)

RoHS :

yes

Housing Color :

Gray

Operating Temperature :

-

EU RoHS :

Compliant

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 4

Color :

Gray

Height (Max) :

0.909 (23.09mm)

Automotive :

No

Nominal current :

23A

Terminal - Width :

77.4mm

AWG (min.) :

20

Stripping length (max.) :

10mm

Nominal voltage :

550V

Approvals :

CSA, UR

Dim :

(W x H) 77.50 mm x 23 mm

Clamp width :

5mm

Number of Levels :

1

Inflammability class of insulation material according to with UL94 :

V0

AWG max. :

12

Termination Style :

Push In, Spring

Rated current In :

23

Type :

262-139

Series :

-

Connection Type :

Spring Clamp

Stripping Length :

9mm ~ 10mm

Cross section (inflexible) (max.) :

4mm²

Features :

+ sleeve,Complies with ATEX Ex-e II standards

Height :

23mm

Material - Insulation :

Polyamide (PA66), Nylon 6/6
