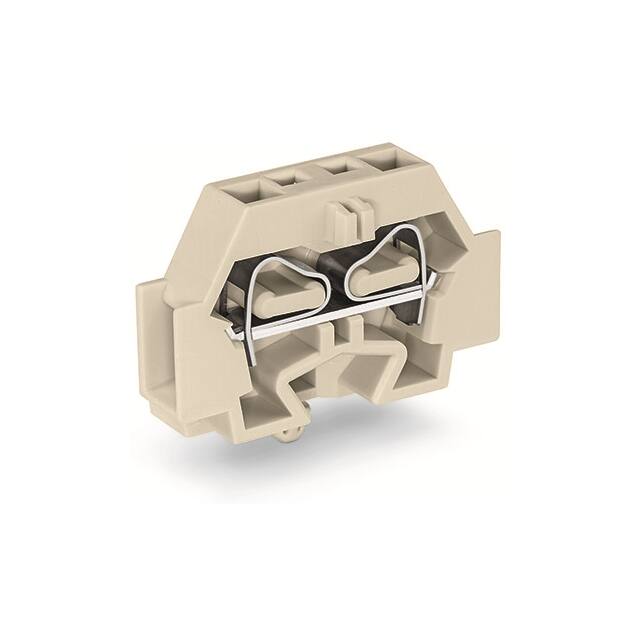

262-180

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Number of Positions :

2

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Stripping length (max.) :

10mm

Termination Style :

Push In, Spring

Type :

Standard Block

Nominal current :

23A

EU RoHS :

Compliant

AWG (min.) :

20

Color :

Light Gray

Number of Circuits :

1

Nominal voltage :

550V

Mounting Type :

Flange, Snap-In

RoHS :

yes

Min. stripping length :

9mm

Material Flammability Rating :

UL94 V-0

Configuration :

L

HTS :

8536.90.40.00

Series :

-

Cross section (inflexible) (min.) :

0.50mm²

Cross section (flexible) (min.) :

0.50mm²

Voltage - IEC :

-

Cross section (inflexible) (max.) :

4mm²

Industrial packaging :

yes

ECCN (US) :

EAR99

Automotive :

No

Fuse Type :

-

Wire Gauge or Range - mm² :

0.5-4mm²

Voltage - UL :

-

Content :

100pc(s)

Terminal - Width :

7.0mm

Manufacturer :

Wago

Cross section (flexible) (max.) :

4mm²

Number of Levels :

1

AWG max. :

12

Features :

+ latch lock base,Complies with ATEX Ex-e II standards

Pins per row :

2

Nominal current - rounded value :

23A

Stripping Length :

9mm ~ 10mm

Dim :

(W x H) 7 mm x 23 mm

Wire Gauge or Range - AWG :

12-20 AWG

PPAP :

No

Width :

7mm

Manufacturer part # :

262-180

No. of rows :

1

Disconnect Type :

-

Height :

23mm

Package :

Box

Clamp width :

7mm

Product Status :

Active

Connection :

Pull spring
