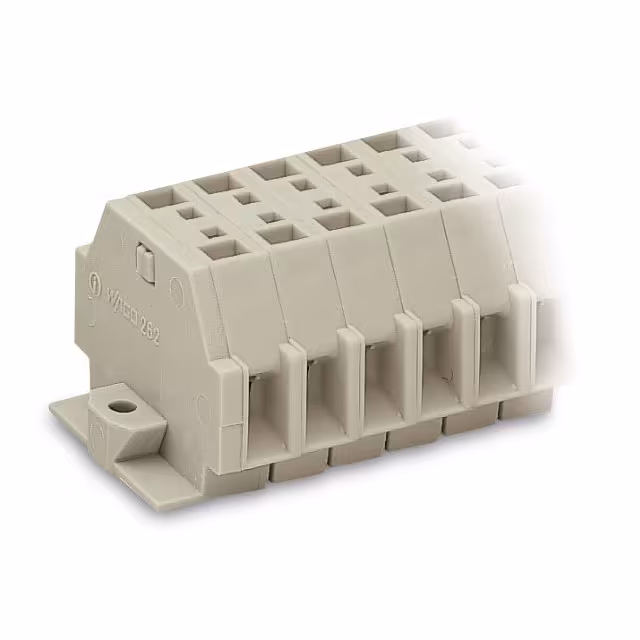

262-189

Manufacturer :

WAGO

Product Category :

Specialized

Features :

+ latch lock base,Complies with ATEX Ex-e II standards

Material Flammability Rating :

UL94 V-0

HTS :

8536.90.40.00

Nominal current :

23A

Cross section (flexible) (max.) :

4mm²

Housing Color :

Gray

Wire Gauge or Range - AWG :

12-20 AWG

Width :

67.40mm

Industrial packaging :

yes

Stripping length (max.) :

10mm

Approvals :

CSA, UR

Configuration :

L

Termination Style :

Push In, Spring

Min. stripping length :

9mm

Cross section (inflexible) (max.) :

4mm²

Package :

Box

AWG (min.) :

20

Type :

262-189

Wire Gauge or Range - mm² :

0.5-4mm²

Connection :

Pull spring

No. of rows :

9

Connection Type :

Spring Clamp

RoHS :

yes

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Operating Temperature :

-

Flammability Rating :

UL94 V-0

Color :

Gray

Cross section (inflexible) (min.) :

0.50mm²

Product Status :

Active

Number of Positions :

18

Number of Poles :

9

Clamp width :

7mm

Pins per row :

2

Stripping Length :

9mm ~ 10mm

Content :

50pc(s)

EU RoHS :

Compliant

Number of Pins :

18

Dim :

(W x H) 67.40 mm x 23 mm

Length :

1.319 (33.50mm)

Current Rating :

23 A

Manufacturer :

Wago

Height (Max) :

0.909 (23.09mm)

Mounting Type :

Snap-In Clip

Automotive :

No

ECCN (US) :

EAR99

AWG max. :

12

Cross section (flexible) (min.) :

0.50mm²

Number of Levels :

1

Nominal voltage :

550V

Nominal current - rounded value :

23A

PPAP :

No

Series :

-

Manufacturer part # :

262-189

Number of Rows :

9

Terminal - Width :

66.0mm

Height :

23mm
