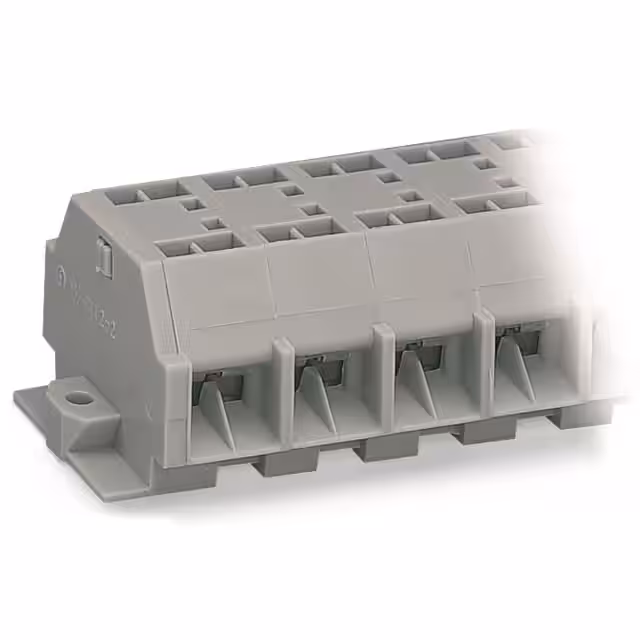

262-210

Manufacturer :

WAGO

Product Category :

Specialized

Content :

25pc(s)

Pins per row :

4

PPAP :

No

Wire Gauge or Range - AWG :

12-28 AWG

Height :

23mm

Configuration :

L

Automotive :

No

Termination Style :

Push In, Spring

Material - Insulation :

Polyamide (PA66), Nylon 6/6

HTS :

8536.90.40.00

Approvals :

CSA, UR

Number of Poles :

10

Operating Temperature :

-

Cross section (inflexible) (max.) :

4mm²

Depth :

23.1

Stripping Length :

9mm ~ 10mm

Type :

262-210

Cross section (flexible) (max.) :

4mm²

Connection :

Pull spring

Nominal current - rounded value :

32A

Voltage - IEC :

630 V

Features :

+ sleeve

Length :

33.5

Rated current In :

24

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 4

Manufacturer part # :

262-210

Nominal current :

32A

No. of rows :

10

Connection Type :

Spring Clamp

Mounting Type :

Surface Mount

Dim :

(W x H) 134.50 mm x 23 mm

RoHS :

yes

Inflammability class of insulation material according to with UL94 :

V0

Width :

134.50mm

Stripping length (max.) :

10mm

Product Status :

Active

AWG max. :

12

Connectable conductor cross section solid-core :

0.08 - 4

Contamination level :

3

Clamp width :

12mm

Material Flammability Rating :

UL94 V-0

Housing Color :

Gray

Industrial packaging :

yes

Connectable conductor cross section multi-wired :

0.08 - 4

AWG (min.) :

28

EU RoHS :

Compliant

Cross section (inflexible) (min.) :

0.08mm²

Color :

Gray

ECCN (US) :

EAR99

Manufacturer :

Wago

Cross section (flexible) (min.) :

0.08mm²

Transparent :

No

Min. stripping length :

9mm

Number of Levels :

1

Wire Gauge or Range - mm² :

0.08-2.5mm²

Terminal - Width :

134.4mm

Number of Positions :

40

Current - IEC :

32 A

Nominal voltage :

630V

Height (Max) :

0.909 (23.09mm)
