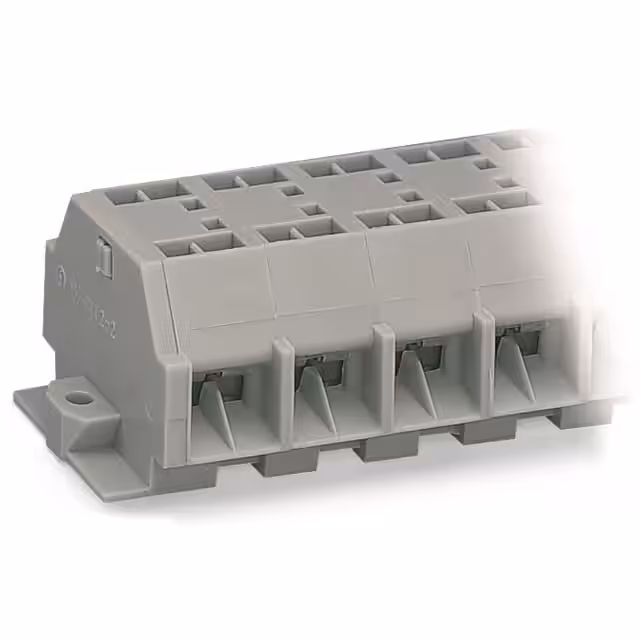

262-252

Manufacturer :

WAGO

Product Category :

Specialized

Current - IEC :

32 A

Operating Temperature :

-

Number of Pins :

8

Rated current In :

24

Nominal current :

32A

Transparent :

No

Current Rating :

32 A

Min. stripping length :

9mm

Contamination level :

3

Wire Gauge or Range - mm² :

0.08-2.5mm²

Length :

33.5

Voltage - IEC :

630 V

HTS :

8536.90.40.00

Pins per row :

4

Manufacturer part # :

262-252

Inflammability class of insulation material according to with UL94 :

V0

Industrial packaging :

yes

Number of Rows :

2

Stripping length (max.) :

10mm

Product Status :

Active

Type :

262-252

Configuration :

L

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 4

Height (Max) :

0.909 (23.09mm)

Series :

-

ECCN (US) :

EAR99

Terminal - Width :

27.0mm

Cross section (inflexible) (max.) :

4mm²

Cross section (flexible) (min.) :

0.08mm²

Height :

23mm

Connection Type :

Spring Clamp

Housing Color :

Gray

Package :

Box

EU RoHS :

Compliant

Approvals :

CSA, UR

Stripping Length :

9mm ~ 10mm

AWG max. :

12

Clamp width :

12mm

Depth :

23.1

Connectable conductor cross section multi-wired :

0.08 - 4

PPAP :

No

Cross section (flexible) (max.) :

4mm²

Manufacturer :

Wago

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Width :

28.40mm

Connection :

Pull spring

Wire Gauge or Range - AWG :

12-28 AWG

Nominal current - rounded value :

32A

Automotive :

No

Number of Levels :

1

Features :

+ latch lock base

Color :

Gray

Number of Positions :

8

Flammability Rating :

UL94 V-0

Connectable conductor cross section solid-core :

0.08 - 4

Number of Poles :

2

Cross section (inflexible) (min.) :

0.08mm²

Material Flammability Rating :

UL94 V-0

Content :

100pc(s)

No. of rows :

2

Dim :

(W x H) 28.40 mm x 23 mm

Nominal voltage :

630V

RoHS :

yes

AWG (min.) :

28

Mounting Type :

Snap-In Clip

Termination Style :

Push In, Spring
