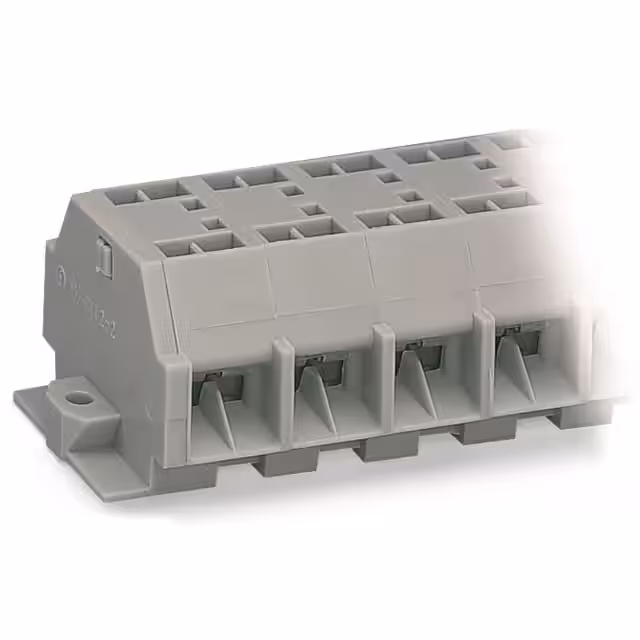

262-254

Manufacturer :

WAGO

Product Category :

Specialized

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Stripping Length :

9mm ~ 10mm

Content :

100pc(s)

Number of Positions :

16

Connectable conductor cross section multi-wired :

0.08 - 4

Stripping length (max.) :

10mm

Transparent :

No

Approvals :

CSA, UR

Wire Gauge or Range - AWG :

12-28 AWG

Number of Levels :

1

Wire Gauge or Range - mm² :

0.08-2.5mm²

Product Status :

Active

Terminal - Width :

51.0mm

Length :

33.5

Pins per row :

4

Cross section (flexible) (min.) :

0.08mm²

Color :

Gray

HTS :

8536.90.40.00

Features :

+ latch lock base

Material Flammability Rating :

UL94 V-0

ECCN (US) :

EAR99

RoHS :

yes

Nominal current :

32A

Height (Max) :

0.909 (23.09mm)

Nominal current - rounded value :

32A

Series :

-

Nominal voltage :

630V

Housing Color :

Gray

Inflammability class of insulation material according to with UL94 :

V0

Current Rating :

32 A

Cross section (inflexible) (max.) :

4mm²

Connection Type :

Spring Clamp

Number of Poles :

4

Connection :

Pull spring

Min. stripping length :

9mm

Manufacturer :

Wago

Width :

52.40mm

Depth :

23.1

Manufacturer part # :

262-254

Configuration :

L

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 4

Voltage - IEC :

630 V

Dim :

(W x H) 52.40 mm x 23 mm

Current - IEC :

32 A

Clamp width :

12mm

No. of rows :

4

Termination Style :

Push In, Spring

EU RoHS :

Compliant

Industrial packaging :

yes

Operating Temperature :

-

Flammability Rating :

UL94 V-0

Number of Pins :

16

Type :

262-254

Number of Rows :

4

Mounting Type :

Snap-In Clip

Contamination level :

3

AWG max. :

12

Connectable conductor cross section solid-core :

0.08 - 4

PPAP :

No

AWG (min.) :

28

Height :

23mm

Cross section (flexible) (max.) :

4mm²

Package :

Box

Cross section (inflexible) (min.) :

0.08mm²

Rated current In :

24

Automotive :

No
