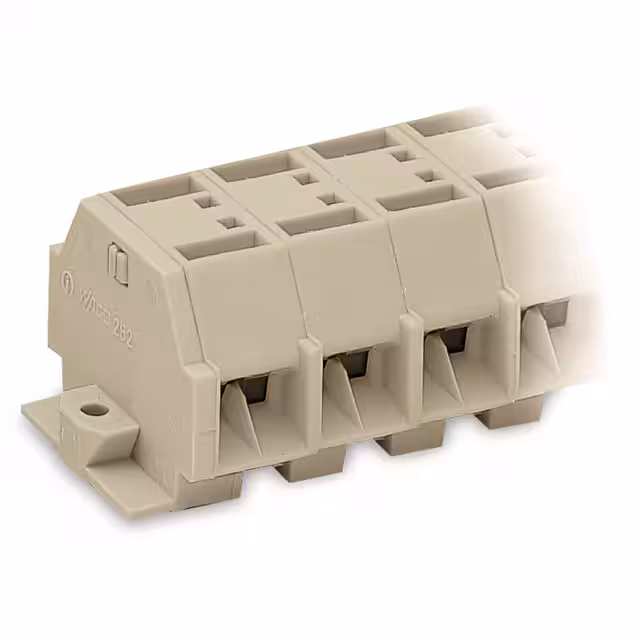

262-292

Manufacturer :

WAGO

Product Category :

Specialized

Depth :

23.1

Nominal voltage :

550V

Features :

+ latch lock base,Complies with ATEX Ex-e II standards

Height :

23mm

Termination Style :

Push In, Spring

Mounting Type :

Snap-In Clip

Cross section (flexible) (max.) :

4mm²

Connectable conductor cross section multi-wired :

0.08 - 4

Terminal - Width :

147.0mm

RoHS :

yes

Operating Temperature :

-

Connection :

Pull spring

Transparent :

No

Material - Insulation :

Polyamide (PA66), Nylon 6/6

HTS :

8536.90.40.00

Inflammability class of insulation material according to with UL94 :

V0

Automotive :

No

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 4

Wire Gauge or Range - mm² :

0.5-4mm²

Stripping Length :

9mm ~ 10mm

Manufacturer part # :

262-292

Cross section (inflexible) (max.) :

4mm²

Manufacturer :

Wago

Number of Poles :

12

Industrial packaging :

yes

Color :

Gray

PPAP :

No

Content :

25pc(s)

Nominal current - rounded value :

30A

Material Flammability Rating :

UL94 V-0

Height (Max) :

0.909 (23.09mm)

Rated current In :

30

Wire Gauge or Range - AWG :

12-20 AWG

Series :

-

Connection Type :

Spring Clamp

Cross section (inflexible) (min.) :

0.50mm²

Number of Levels :

1

Type :

262-292

Product Status :

Active

ECCN (US) :

EAR99

Dim :

(W x H) 148.40 mm x 23 mm

Cross section (flexible) (min.) :

0.50mm²

EU RoHS :

Compliant

Package :

Box

AWG (min.) :

20

Pins per row :

4

Approvals :

CSA, UR

Length :

33.5

Housing Color :

Gray

AWG max. :

12

Connectable conductor cross section solid-core :

0.08 - 4

Configuration :

L

Min. stripping length :

9mm

Clamp width :

12mm

Width :

148.40mm

No. of rows :

12

Nominal current :

30A

Stripping length (max.) :

10mm

Number of Positions :

48
