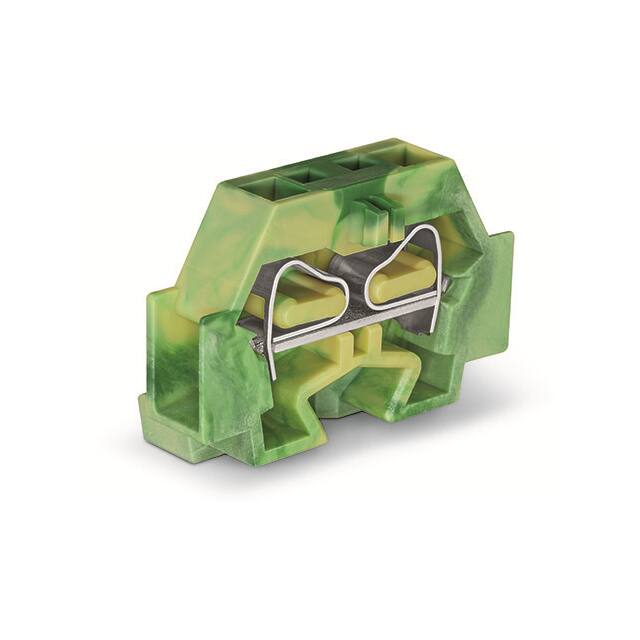

262-307

Manufacturer :

WAGO

Product Category :

Specialized

Cross section (flexible) (min.) :

0.08mm²

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 4

Configuration :

Terre

Manufacturer :

Wago

Manufacturer part # :

262-307

AWG (min.) :

28

Housing Color :

Green, Yellow

Transparent :

No

Connection :

Pull spring

Rated current In :

24

Industrial packaging :

yes

Cross section (flexible) (max.) :

4mm²

Nominal current - rounded value :

24A

No. of rows :

1

Number of Circuits :

1

Cross section (inflexible) (min.) :

0.08mm²

Stripping length (max.) :

10mm

Pins per row :

2

RoHS :

yes

Mounting Type :

Flange, Snap-In

Nominal current :

24A

Length :

33.5

EU RoHS :

Compliant

Width :

7mm

Type :

262-307

Content :

100pc(s)

Terminal - Width :

7.0mm

Material Flammability Rating :

UL94 V-0

Connectable conductor cross section multi-wired :

0.08 - 4

Depth :

23.1

Height (Max) :

0.909 (23.09mm)

ECCN (US) :

EAR99

HTS :

8536.90.40.00

Operating Temperature :

-

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Number of Positions :

2

Cross section (inflexible) (max.) :

4mm²

Nominal voltage :

630V

Wire Gauge or Range - mm² :

0.08-2.5mm²

Series :

-

Color :

Green, Yellow

Min. stripping length :

9mm

Approvals :

CSA, cURus

Stripping Length :

9mm ~ 10mm

Package :

Box

Number of Levels :

1

Automotive :

No

Dim :

(W x H) 7 mm x 23 mm

Product Status :

Active

AWG max. :

12

Clamp width :

7mm

PPAP :

No

Termination Style :

Push In, Spring

Features :

+ sleeve

Height :

23mm

Wire Gauge or Range - AWG :

12-28 AWG

Connectable conductor cross section solid-core :

0.08 - 4

Inflammability class of insulation material according to with UL94 :

V0
