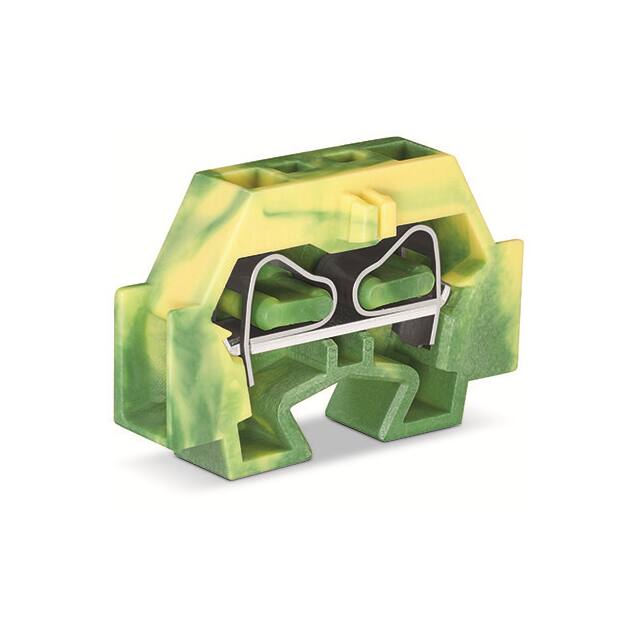

262-327

Manufacturer :

WAGO

Product Category :

Specialized

Connection :

Pull spring

Width :

7mm

RoHS :

yes

No. of rows :

1

Stripping Length :

9mm ~ 10mm

Housing Color :

Green, Yellow

Configuration :

Terre

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Terminal - Width :

7.0mm

Min. stripping length :

9mm

Nominal voltage :

630V

EU RoHS :

Compliant

AWG (min.) :

28

Flammability Rating :

UL94 V-0

Cross section (flexible) (max.) :

4mm²

Automotive :

No

Number of Pins :

2

Wire Gauge or Range - AWG :

12-28 AWG

Cross section (inflexible) (min.) :

0.08mm²

Height (Max) :

0.909 (23.09mm)

Current Rating :

24 A

Product Status :

Active

Type :

Standard Block

Number of Positions :

2

Number of Circuits :

1

Number of Levels :

1

Length :

1.319 (33.50mm)

Nominal current :

24A

Operating Temperature :

-

AWG max. :

12

Approvals :

CSA, cURus

Dim :

(W x H) 7 mm x 23 mm

Series :

-

Content :

100pc(s)

Package :

Box

Material Flammability Rating :

UL94 V-0

Height :

23mm

Manufacturer :

Wago

Color :

Green, Yellow

Number of Rows :

1

Pins per row :

2

PPAP :

No

Nominal current - rounded value :

24A

Clamp width :

7mm

Industrial packaging :

yes

Mount :

Screw

Termination Style :

Push In, Spring

Stripping length (max.) :

10mm

ECCN (US) :

EAR99

Mounting Type :

Flange, Snap-In

Cross section (flexible) (min.) :

0.08mm²

HTS :

8536.90.40.00

Cross section (inflexible) (max.) :

4mm²

Wire Gauge or Range - mm² :

0.08-2.5mm²

Features :

+ latch lock base

Manufacturer part # :

262-327
