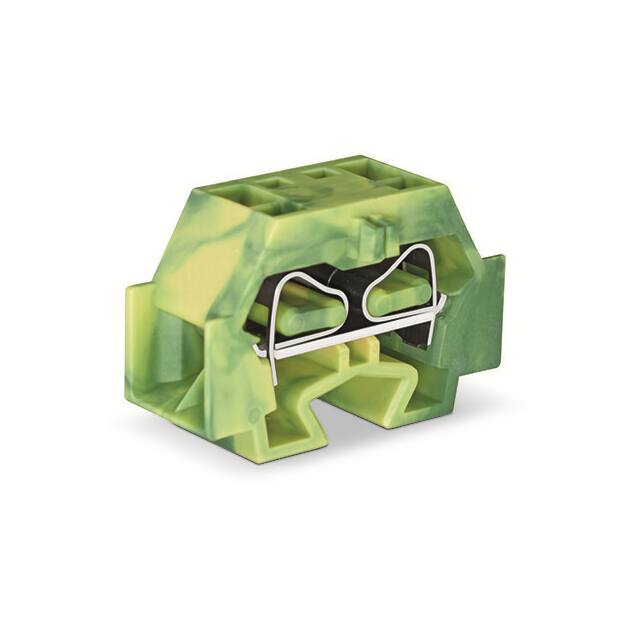

262-357

Manufacturer :

WAGO

Product Category :

Specialized

Stripping Length :

9mm ~ 10mm

Manufacturer :

Wago

Transparent :

No

Type :

Standard Block

Approvals :

CSA, cURus

Product Status :

Active

Number of Levels :

1

Connectable conductor cross section solid-core :

0.08 - 4

Rated current In :

24

Color :

Green, Yellow

Operating Temperature :

-

ECCN (US) :

EAR99

EU RoHS :

Compliant

Termination Style :

Push In, Spring

Height :

33.5

Connectable conductor cross section multi-wired :

0.08 - 4

Features :

-

Terminal - Width :

12.0mm

Number of Positions :

4

Length :

33.5

Material Flammability Rating :

UL94 V-0

RoHS :

yes

Mounting Type :

Flange, Snap-In

HTS :

8536.90.40.00

Depth :

23.1

Material - Insulation :

Polyamide (PA66), Nylon 6/6

PPAP :

No

Housing Color :

Green, Yellow

Inflammability class of insulation material according to with UL94 :

V0

Wire Gauge or Range - AWG :

12-28 AWG

Automotive :

No

Series :

-

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 4

Number of Circuits :

1

Width :

12

Wire Gauge or Range - mm² :

0.08-2.5mm²

Package :

Box

Height (Max) :

0.909 (23.09mm)
