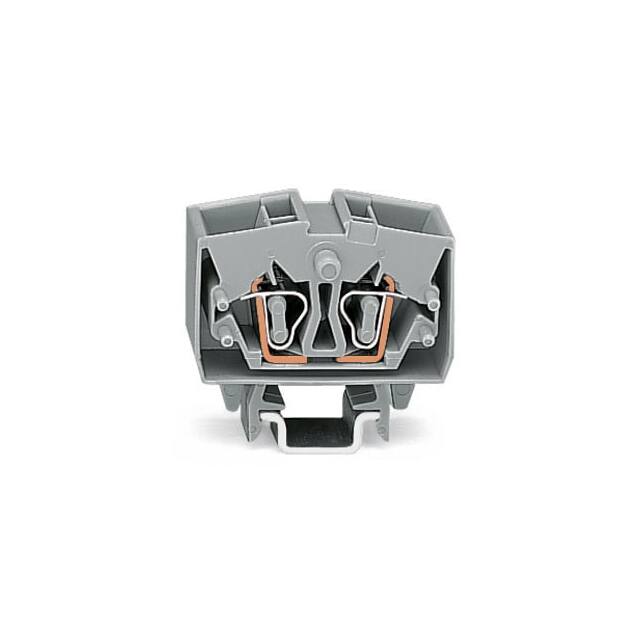

264-724

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

No. of rows :

1

ECCN (US) :

EAR99

Packaging :

Box

Length :

32

Number of Contacts :

4

Automotive :

No

Number of Rows :

1

Height :

24.50mm

Current Rating (Max) :

24(A)

Package :

Box

Mounting Type :

DIN Rail

Voltage Rating :

600 V

Nominal current (details) :

24A

Rad Hardened :

No

Nominal current - rounded value :

24A

Width :

10mm

Depth :

24.5

Maximum Current Rating (A) :

24

AWG (min.) :

28

Manufacturer part # :

264-724

Rated current In :

24

Min. stripping length :

8mm

Material Flammability Rating :

UL94 V-0

Material - Insulation :

-

Wire Gauge or Range - mm² :

0.08-2.5mm²

Flammability Rating :

UL94 V-0

Lead Free :

Lead Free

Cross section (inflexible) (min.) :

0.08mm²

Disconnect Type :

-

Terminal - Width :

10.0mm

Pins per row :

4

Termination :

Cage Clamp

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 2.5

Fuse Type :

-

Termination Style :

Push In, Spring

Clamp width :

10mm

Features :

-

Number of Poles :

4

Manufacturer :

Wago

Nominal voltage :

800V

Current Rating :

24 A

Nominal current :

24A

Inflammability class of insulation material according to with UL94 :

V0

Wire Gauge (Max) :

12 AWG

Number of Positions :

4

Housing Color :

Blue

Stripping length (max.) :

9mm

Wire Gauge (Min) :

28 AWG

Max Current Rating :

24 A

Content :

1pc(s)

Color :

Blue

Stripping Length :

8mm ~ 9mm

Number of Levels :

1

PPAP :

No

AWG max. :

14

Cross section (flexible) (max.) :

2.50mm²

Type :

Terminal Block

Product Status :

Active

Pitch :

10 mm

Cross section (flexible) (min.) :

0.08mm²

Connectable conductor cross section fine-strand with cable end sleeve :

0.25 - 1.5

Wire Gauge or Range - AWG :

12-28 AWG

Number of Pins :

4

Connectable conductor cross section multi-wired :

0.08 - 2.5

Voltage - IEC :

800V

Mounting :

T DIN RAIL

Voltage - UL :

-

Nominal voltage (details) :

800V

Mounting Style :

T DIN RAIL

Connection :

Pull spring

Current - IEC :

24 A

EU RoHS :

Compliant

HTS :

8536.90.40.00

Configuration :

N

Cross section (inflexible) (max.) :

2.50mm²

Compatible with (details) :

TS 15

Series :

264

Number of Circuits :

1

Connectable conductor cross section solid-core :

0.08 - 2.5

RoHS :

yes

Dim :

(W x H) 10 mm x 24.50 mm
