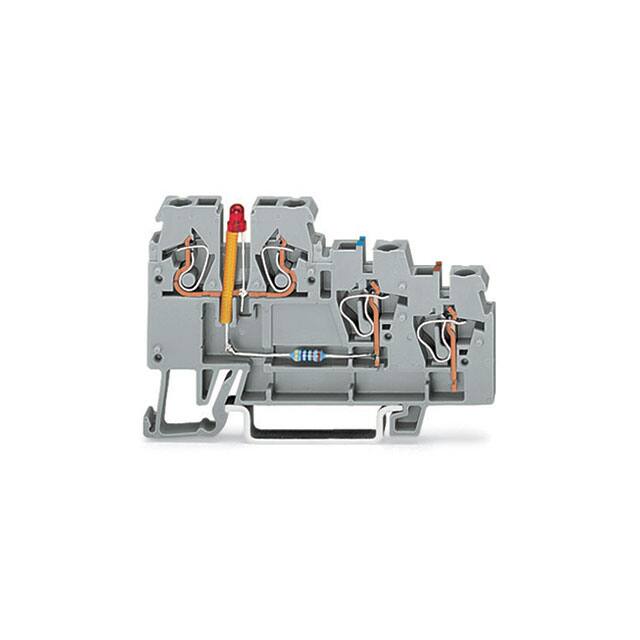

270-560/281-434

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Disconnect Type :

-

Number of Levels :

3; 2 Connected

Wire Gauge or Range - mm² :

0.08-2.5mm²

Series :

-

Automotive :

No

Voltage - UL :

-

Cross section (flexible) (max.) :

2.50mm²

Terminal - Width :

5.0mm

Material - Insulation :

-

Voltage - IEC :

-

Package :

Box

No. of rows :

3

Cross section (inflexible) (min.) :

0.08mm²

Product Status :

Active

Height :

39mm

Number of Positions :

4

Connection :

Pull spring

Manufacturer :

Wago

AWG max. :

14

Color :

Gray

Industrial packaging :

yes

Termination Style :

Push In, Spring

Type :

WAGO GmbH and Co. KG

Number of Circuits :

3

Cross section (inflexible) (max.) :

2.50mm²

Min. stripping length :

6mm

Features :

+ red LED

Material Flammability Rating :

UL94 V-0

Nominal voltage :

24V

Approvals :

CSA, UR

Stripping length (max.) :

7mm

Stripping Length :

6mm ~ 7mm

Content :

50pc(s)

HTS :

8536.90.40.00

RoHS :

yes

Dim :

(W x H) 5 mm x 39 mm

ECCN (US) :

EAR99

Configuration :

L

Clamp width :

5mm

AWG (min.) :

28

Wire Gauge or Range - AWG :

12-28 AWG

PPAP :

No

Mounting Type :

DIN Rail

Width :

5mm

Manufacturer part # :

270-560/281-434

Fuse Type :

-

EU RoHS :

Compliant with Exemption

Cross section (flexible) (min.) :

0.08mm²
