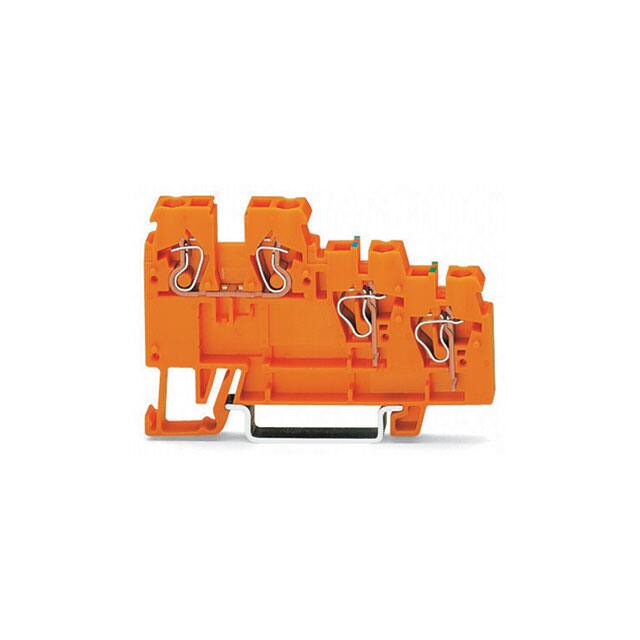

270-577

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Approvals :

CSA, UR

Voltage - IEC :

250V

Cross section (inflexible) (max.) :

2.50mm²

Nominal current - rounded value :

18A

ECCN (US) :

EAR99

Number of Circuits :

3

Stripping length (max.) :

7mm

Height :

39mm

Manufacturer part # :

270-577

Note :

-

Number of Positions :

4

EU RoHS :

Compliant

Nominal voltage :

250V

No. of rows :

3

Product Status :

Active

Color :

Orange

Current - IEC :

18 A

Mounting Type :

DIN Rail

Connection :

Pull spring

Width :

5mm

AWG max. :

14

Wire Gauge or Range - mm² :

0.08-2.5mm²

Min. stripping length :

6mm

Mounting :

PCB

Automotive :

No

Disconnect Type :

-

Content :

10pc(s)

Cross section (flexible) (min.) :

0.08mm²

Manufacturer :

Wago

HTS :

8536.90.40.00

Clamp width :

5mm

Pitch :

3,81 mm

Material Flammability Rating :

UL94 V-0

Nominal current :

18A

Features :

-

Number of Levels :

3

RoHS :

yes

PPAP :

No

Contamination level :

3

Termination Style :

Push In, Spring

AWG (min.) :

28

Package :

Box

Wire Gauge or Range - AWG :

12-28 AWG

Cross section (inflexible) (min.) :

0.08mm²

Material - Insulation :

-

Stripping Length :

6mm ~ 7mm

Terminal - Width :

5.0mm

Dim :

(W x H) 5 mm x 39 mm

Fuse Type :

-

Industrial packaging :

yes

Voltage - UL :

-

Cross section (flexible) (max.) :

2.50mm²

Series :

Printed Circuit

Type :

WAGO GmbH and Co. KG
