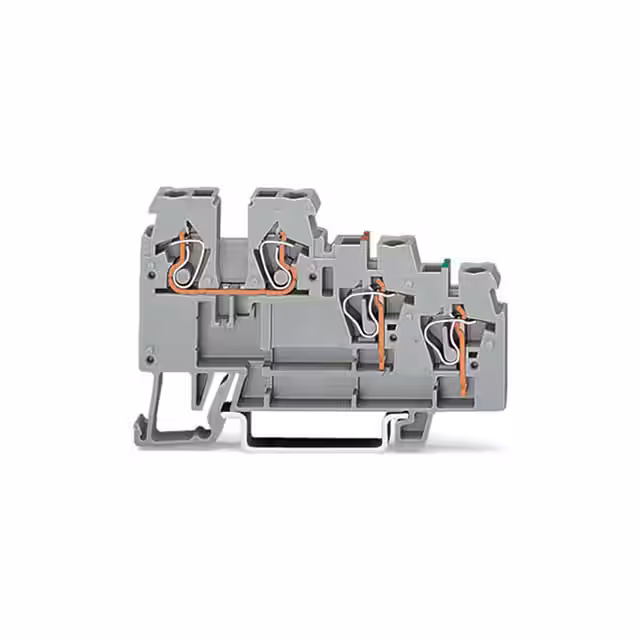

270-585

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

EU RoHS :

Compliant

AWG (min.) :

28

Approvals :

CSA, UR

Nominal current :

18A

Connection :

Pull spring

Cross section (flexible) (min.) :

0.08mm²

Material Flammability Rating :

UL94 V-0

Wire Gauge or Range - AWG :

12-28 AWG

Series :

Printed Circuit

Configuration :

L

RoHS :

yes

Width :

5mm

Connectable conductor cross section multi-wired :

0.08 - 2.5

Stripping Length :

6mm ~ 7mm

ECCN (US) :

EAR99

Number of Levels :

3

Manufacturer part # :

270-585

Length :

68

Mounting Type :

DIN Rail

Dim :

(W x H) 5 mm x 39 mm

Height :

39mm

No. of rows :

3

Connectable conductor cross section solid-core :

0.08 - 2.5

Cross section (flexible) (max.) :

2.50mm²

Wire Gauge or Range - mm² :

0.08-2.5mm²

Content :

50pc(s)

Material - Insulation :

-

Pitch :

3,96 mm

Mounting :

PCB

Depth :

39

Terminal - Width :

5.0mm

Color :

Gray

Inflammability class of insulation material according to with UL94 :

V0

Manufacturer :

Wago

Cross section (inflexible) (min.) :

0.08mm²

Termination Style :

Push In, Spring

Type :

Standard Block

Weight :

8.855g

Current - IEC :

18 A

Voltage - UL :

-

Nominal voltage :

250V

Connectable conductor cross section fine-strand with cable end sleeve :

0.25 - 1.5

Note :

-

Number of Circuits :

3

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 2.5

Number of Positions :

4

Clamp width :

5mm

Package :

Box

Cross section (inflexible) (max.) :

2.50mm²

AWG max. :

14

Industrial packaging :

yes

Automotive :

No

Rated current In :

18

Voltage - IEC :

250V

Disconnect Type :

-

Features :

-

Stripping length (max.) :

7mm

Min. stripping length :

6mm

PPAP :

No

Fuse Type :

-

Product Status :

Active

Nominal current - rounded value :

18A
