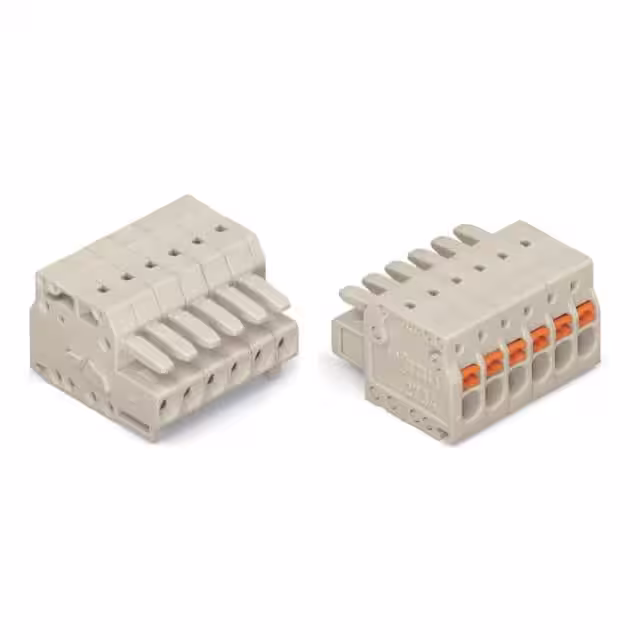

2734-105

Manufacturer :

WAGO

Product Category :

Headers, Plugs and Sockets

Torque - Screw :

-

Mounting Type :

Through Hole

Voltage :

300 V

Rated current In :

10

Housing Material :

Polyamide (PA66), Nylon 6/6

Rated surge voltage :

2.5

Connectable conductor cross section fine-strand without cable end sleeve :

0.2 - 1.5

EU RoHS :

Compliant

Wire Size :

24-16 AWG

Current - UL :

10 A

Contact Tail Length :

-

PPAP :

No

Number of Levels :

1

Current - IEC :

10A

Type of electric connection :

Spring clamp connection

Pitch :

3.5mm

Positions Per Level :

5

HTS :

8536.69.40.40

Wire Strip Length :

8-9mm

Type :

Plug, Female Sockets

Number of Positions :

5

Number of Rows :

1

Degree of protection (IP), mounted :

IP20

Material contact :

Other copper alloys

Product Status :

Active

Voltage - UL :

300 V

Voltage - IEC :

320 V

Current :

10 A

Connectable conductor cross section fine-strand with cable end sleeve :

0.25 - 0.75

Plug Wire Entry :

180°

Pollution degree :

2

Number of Contacts :

5 Pole

Automotive :

No

Material housing :

Plastic

Features :

Retention Latches (Non-Wire Side)

Connectable conductor cross section solid-core :

0.2 - 1.5

Over voltage category :

III

Material Flammability Rating :

UL94 V-0

Insulation Height :

0.531 (13.50mm)

Wire Gauge or Range - AWG :

16-24 AWG

Contact Material :

COPPER ALLOY

Connectable conductor cross section multi-wired :

0.2 - 1.5

Size :

24-16 AWG

Wire Gauge or Range - mm² :

0.2-1.5mm²

Inflammability class of insulation material according to with UL94 :

V0

Header Orientation :

-

Ingress Protection :

-

ECCN (US) :

EAR99

Screw Size :

-

Material of contact surface :

Tin

Housing Color :

Grey

Gender :

FEMALE

Approvals :

CCA, CSA, UL, UR

Operating Temperature :

-60°C ~ 100°C

Contact Mating Finish :

Tin

Temperature :

-60-100 °C

Stripping Length :

8-9 mm

With protective conductor :

No

Contact Finish :

Tin

Color :

Gray

Termination Style :

Screwless - Leg Spring, Push-In Spring

Manufacturer :

Wago
