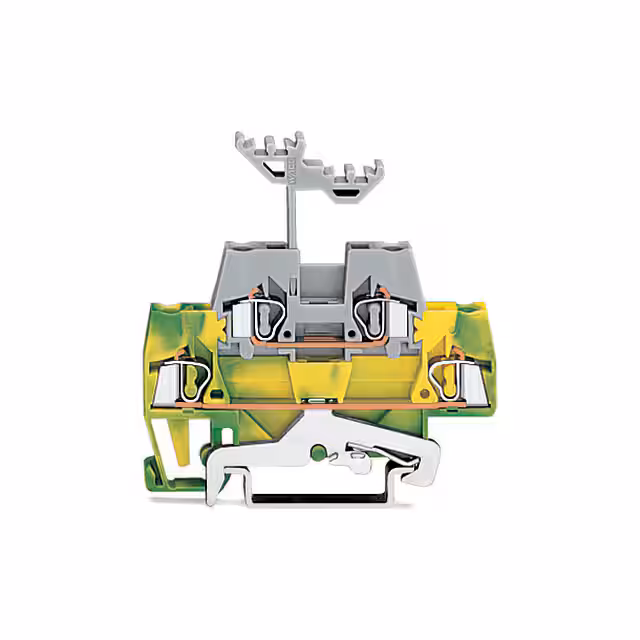

280-527

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Cross section (flexible) (min.) :

0.08mm²

Product Height (mm) :

58.5

Fuse Type :

-

Industrial packaging :

yes

Terminal - Width :

5.0mm

Features :

-

PPAP :

No

Min. stripping length :

8mm

Packaging :

Box

Cross section (inflexible) (min.) :

0.08mm²

Width :

5mm

Voltage - UL :

-

AWG (min.) :

28

Pins per row :

2

Product Length (mm) :

64

Approvals :

CSA

Package :

Box

Cross section (flexible) (max.) :

2.50mm²

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Stripping length (max.) :

9mm

RoHS :

yes

Dim :

(W x H) 5 mm x 58.50 mm

Nominal voltage :

500V

Wire Gauge or Range - mm² :

0.08-2.5mm²

Voltage - IEC :

500V

Material Flammability Rating :

UL94 V-0

Clamp width :

5mm

Cross section (inflexible) (max.) :

2.50mm²

ECCN (US) :

EAR99

EU RoHS :

Compliant with Exemption

Current - IEC :

20 A

SVHC Exceeds Threshold :

yes

Product Depth (mm) :

5

Number of Levels :

2; 1 Grounded

Content :

50pc(s)

No. of rows :

2

SVHC :

yes

Manufacturer part # :

280-527

Automotive :

No

Gender :

F

Manufacturer :

Wago

Series :

WINSTA MIDI

Nominal current - rounded value :

20A

Connection :

Pull spring

Mounting Type :

DIN Rail

HTS :

8536.90.40.00

Number of Positions/Contacts :

3

Stripping Length :

8mm ~ 9mm

Wire Gauge or Range - AWG :

12-28 AWG

Nominal current :

20A

Shell Material :

PA

AWG max. :

14

Note :

n/a

Color :

Green, Yellow

Shell Size :

-

Type :

Terminal Block

Number of Positions :

4

Number of Contacts :

4

Termination Style :

Push In, Spring

Number of Circuits :

2

Height :

58.50mm

Disconnect Type :

-

Product Status :

Active
