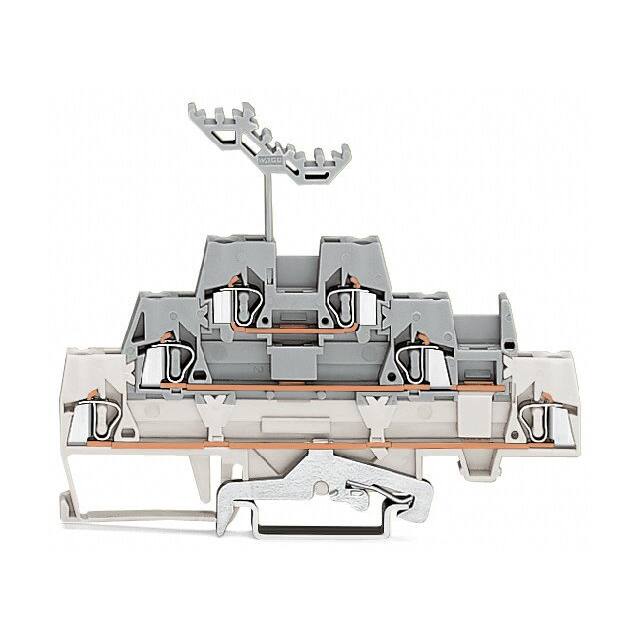

280-548

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Connectable conductor cross section solid-core :

0.08 - 2.5

Type :

Terminal Block

AWG max. :

14

Nominal current :

20A

Dim :

(W x H) 5 mm x 76.50 mm

Cross section (inflexible) (max.) :

2.50mm²

Number of Positions/Contacts :

3

Manufacturer part # :

280-548

Voltage - UL :

-

Cross section (inflexible) (min.) :

0.08mm²

Cross section (flexible) (min.) :

0.08mm²

Note :

n/a

RoHS :

yes

Fuse Type :

-

Minimum Operating Temperature (°C) :

-60

Features :

-

Wire Gauge :

12-28(AWG)

Series :

WINSTA MIDI

Inflammability class of insulation material according to with UL94 :

V0

PPAP :

No

EU RoHS :

Compliant with Exemption

HTS :

8536.90.40.00

Housing Color :

White/Gray/Gray

Voltage - IEC :

500V

Stripping Length :

8mm ~ 9mm

Terminal - Width :

5.0mm

Material Flammability Rating :

UL94 V-0

Product Status :

Active

Height :

76.50mm

Approvals :

CSA, UR

Width :

5mm

Number of Contacts :

6

Number of Rows :

6

Current Rating (Max) :

20(A)

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 2.5

Cross section (flexible) (max.) :

2.50mm²

SVHC :

yes

Gender :

Male

Mounting :

DIN Rail

Housing Material :

Polyamide 6/6

Current - IEC :

20 A

Wire Gauge or Range - AWG :

12-28 AWG

Maximum Current Rating (A) :

20

Nominal voltage :

500V

Shell Material :

PA

Product Length (mm) :

103

Termination Style :

Push In, Spring

Product Height (mm) :

76.5

Connectable conductor cross section multi-wired :

0.08 - 2.5

Manufacturer :

Wago

Wire Gauge or Range - mm² :

0.08-2.5mm²

Depth :

76.5

Maximum Voltage Rating :

500V

SVHC Exceeds Threshold :

yes

Number of Circuits :

3

Color :

White

Connection :

Pull spring

Number of Contact Rows :

6

Connectable conductor cross section fine-strand with cable end sleeve :

0.25 - 1.5

No. of rows :

3

Automotive :

No

Min. stripping length :

8mm

Operating Voltage (Max) :

500V

Shell Size :

-

Packaging :

Box

Industrial packaging :

yes

Mounting Type :

DIN Rail

Number of Pins :

6

ECCN (US) :

EAR99

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Package :

Box

Flammability Rating :

UL94 V-0

Maximum Operating Temperature (°C) :

105

Content :

40pc(s)

Disconnect Type :

-

Rad Hardened :

No

Mounting Style :

Din-Rail

Clamp width :

5mm

Nominal current - rounded value :

20A

Pins per row :

2

Stripping length (max.) :

9mm

Current Rating :

20 A

Length :

103

Number of Positions :

6

Number of Levels :

3

AWG (min.) :

28
