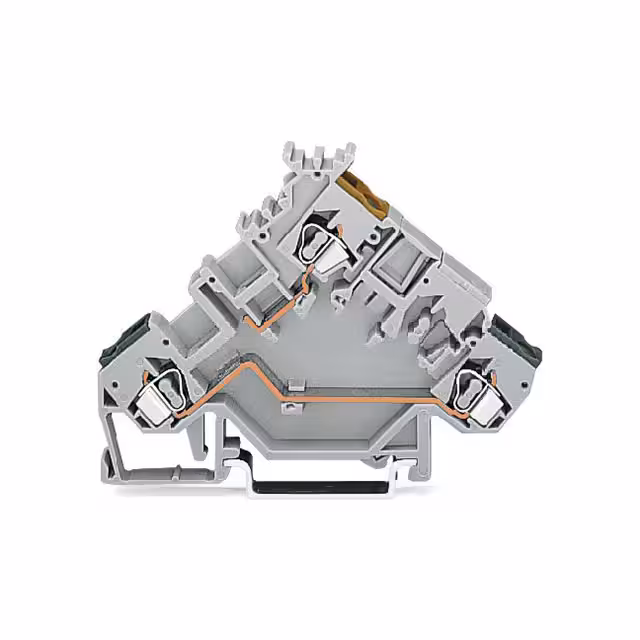

280-555

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Fuse Type :

-

Width :

5mm

Shell Material :

PA

Gender :

Male

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Industrial packaging :

yes

No. of rows :

2

Note :

n/a

Color :

Gray

Voltage - UL :

-

Stripping length (max.) :

9mm

Voltage - IEC :

400V

ECCN (US) :

EAR99

Current - IEC :

20 A

Inflammability class of insulation material according to with UL94 :

V0

Features :

-

Manufacturer :

Wago

Connectable conductor cross section solid-core :

0.08 - 2.5

Connectable conductor cross section multi-wired :

0.08 - 2.5

Number of Positions :

3

Cross section (flexible) (min.) :

0.08mm²

Shell Size :

-

AWG max. :

14

Housing Color :

Gray

Cross section (flexible) (max.) :

2.50mm²

Nominal current - rounded value :

20A

Type :

Sensor/Actuator Terminal Block

Number of Rows :

3

Configuration :

L

Number of Levels :

2

Manufacturer part # :

280-555

Cross section (inflexible) (max.) :

2.50mm²

Packaging :

Box

EU RoHS :

Compliant

Content :

50pc(s)

Terminal - Width :

5.0mm

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 2.5

Contamination level :

3

Rated current In :

20

Min. stripping length :

8mm

PPAP :

No

Nominal voltage :

400V

Approvals :

CSA, UR

Wire Gauge or Range - mm² :

0.08-2.5mm²

Disconnect Type :

-

Current Rating :

20 A

Stripping Length :

8mm ~ 9mm

Product Status :

Active

Minimum Operating Temperature (°C) :

-60

Height :

55.50mm

Product Depth (mm) :

80

Depth :

55.5

Cross section (inflexible) (min.) :

0.08mm²

Termination Style :

Push In, Spring

RoHS :

yes

Number of Pins :

3

Connection :

Pull spring

Series :

WINSTA MIDI

Dim :

(W x H) 5 mm x 55.50 mm

Mounting :

DIN Rail

Product Length (mm) :

5

Length :

80

Connectable conductor cross section fine-strand with cable end sleeve :

0.25 - 1.5

AWG (min.) :

28

HTS :

8536.90.40.00

Clamp width :

5mm

Automotive :

No

Nominal current :

20A

Package :

Box

Product Height (mm) :

55.5

Material Flammability Rating :

UL94 V-0

Maximum Operating Temperature (°C) :

105

Number of Circuits :

1

Wire Gauge or Range - AWG :

12-28 AWG

Number of Positions/Contacts :

3

Flammability Rating :

UL94 V-0

Mounting Type :

DIN Rail

Number of Contacts :

3
