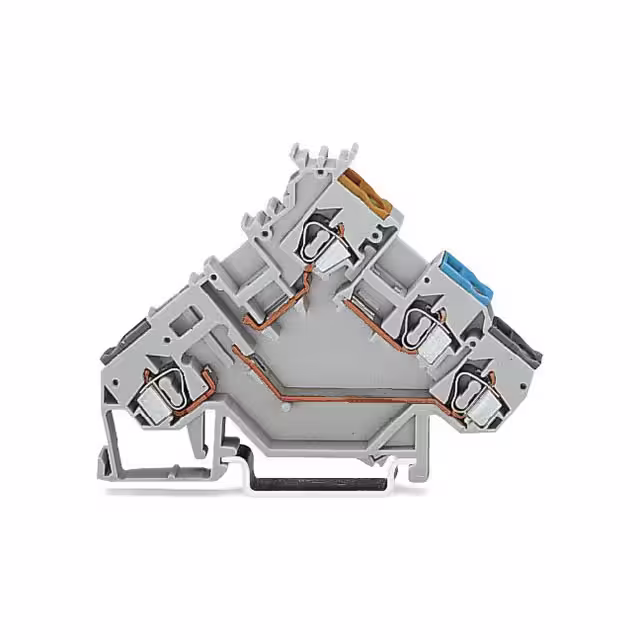

280-561

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Stripping length (max.) :

9mm

Number of Positions/Contacts :

3

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 2.5

Fuse Type :

-

Current - IEC :

6.3 A

Shell Material :

PA

Number of Positions :

4

Current Rating (Max) :

6(A)

Number of Levels :

3; 2 Connected

Manufacturer :

Wago

Product Status :

Active

Number of Circuits :

3

Connection :

Pull spring

RoHS :

yes

AWG max. :

14

Disconnect Type :

Component, Removable Plug

Clamp width :

5mm

Voltage - Load :

300V ~ 530V

Operating Voltage (Max) :

250V

No. of rows :

4

Type :

Sensor Block

Number of Contacts :

4(POS)

Cross section (flexible) (max.) :

2.50mm²

Shell Size :

-

Termination Method :

Clamp

Circuit :

SPST-NO (1 Form A)

Voltage - IEC :

250V

Termination Style :

Screw Terminal

Material Flammability Rating :

UL94 V-0

Cross section (inflexible) (max.) :

2.50mm²

Wire Gauge or Range - mm² :

0.08-2.5mm²

Length :

80

Cross section (inflexible) (min.) :

0.08mm²

Series :

MCPC

Depth :

55.5

Output Type :

AC, Proportional Control

Cross section (flexible) (min.) :

0.08mm²

Height :

55.50mm

Terminal - Width :

5.0mm

Housing Material :

Polyamide 6/6

Approvals :

CSA, UL

Industrial packaging :

yes

Number of Rows :

4

Configuration :

L

Connectable conductor cross section fine-strand with cable end sleeve :

0.25 - 1.5

Content :

50pc(s)

Current Rating :

6 A

Supplier Device Package :

--

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Nominal voltage :

250V

Rated current In :

6

Inflammability class of insulation material according to with UL94 :

V0

Dim :

(W x H) 5 mm x 55.50 mm

Gender :

Male

Nominal current :

6A

Manufacturer part # :

280-561

Note :

n/a

Wire Gauge :

12-28(AWG)

Features :

-

Pins per row :

1

AWG (min.) :

28

Mounting Style :

Din-Rail

Width :

5mm

Color :

Gray

Package / Case :

Hockey Puck

Packaging :

Bulk

Contamination level :

3

Nominal current - rounded value :

6A

Number of Pins :

4

Voltage - Input :

8 ~ 32VDC

Connectable conductor cross section multi-wired :

0.08 - 2.5

Rad Hardened :

No

Mounting Type :

Chassis Mount

Flammability Rating :

UL94 V-0

Package :

Box

Load Current :

50A

Voltage - UL :

-

Wire Gauge or Range - AWG :

12-28 AWG

Stripping Length :

8mm ~ 9mm

Connectable conductor cross section solid-core :

0.08 - 2.5

Min. stripping length :

8mm

Housing Color :

Gray
