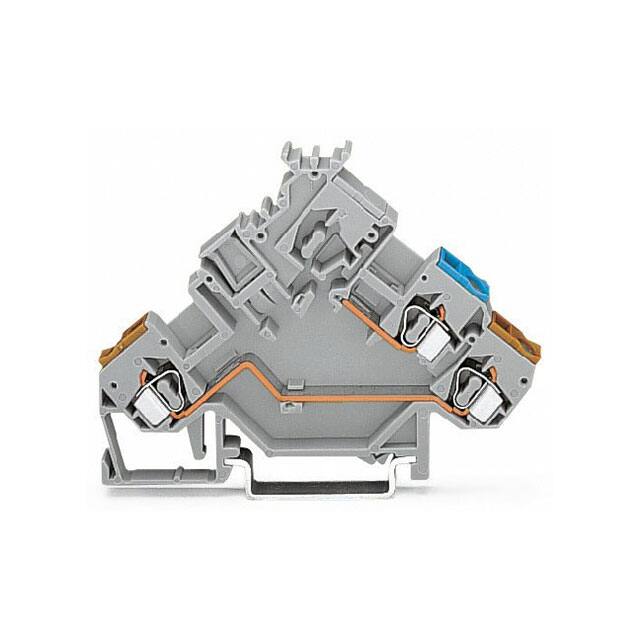

280-562

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Number of Circuits :

1

Dim :

(W x H) 5 mm x 55.50 mm

Cross section (flexible) (max.) :

2.50mm²

Manufacturer :

Wago

ECCN (US) :

EAR99

Features :

-

Number of Levels :

2

Housing Color :

Gray

Voltage - IEC :

400V

Clamp width :

5mm

Manufacturer part # :

280-562

Min. stripping length :

8mm

AWG max. :

14

HTS :

8536.90.40.00

Type :

Sensor/Actuator Terminal Block

Cross section (flexible) (min.) :

0.08mm²

Maximum Voltage Rating :

400V

Current - IEC :

20 A

PPAP :

No

Shell Material :

PA

Height :

55.50mm

Gender :

FEMALE

Cross section (inflexible) (min.) :

0.08mm²

Shell Size :

-

Fuse Type :

-

RoHS :

yes

Number of Positions/Contacts :

3

AWG (min.) :

28

Wire Gauge or Range - mm² :

0.08-2.5mm²

Color :

Gray

Content :

50pc(s)

Number of Contacts :

3

Disconnect Type :

-

Industrial packaging :

yes

Maximum Operating Temperature (°C) :

105

Note :

n/a

Stripping Length :

8mm ~ 9mm

Minimum Operating Temperature (°C) :

-60

Series :

WINSTA MIDI

Product Status :

Active

Stripping length (max.) :

9mm

Automotive :

No

Termination Method :

Spring Clamp

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Nominal current - rounded value :

20A

Terminal - Width :

5.0mm

Mounting :

DIN Rail

Wire Gauge or Range - AWG :

12-28 AWG

No. of rows :

2

Termination Style :

Push In, Spring

Nominal current :

20A

Weight :

9.727g

Connection :

Pull spring

Width :

5mm

Configuration :

L

Nominal voltage :

400V

Cross section (inflexible) (max.) :

2.50mm²

Approvals :

CSA, UR

Package :

Box

Material Flammability Rating :

UL94 V-0

Number of Positions :

3

Mounting Type :

DIN Rail

Maximum Current Rating (A) :

20

EU RoHS :

Compliant

Voltage - UL :

-
