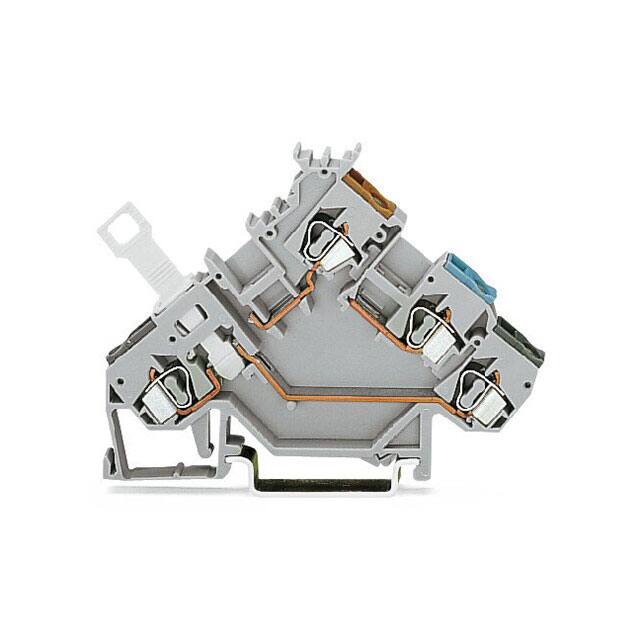

280-563

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Features :

-

EU RoHS :

Compliant

Mounting :

DIN Rail

Configuration :

L

Width :

5mm

Voltage - IEC :

400V

Series :

WINSTA MIDI

Manufacturer part # :

280-563

Dim :

(W x H) 5 mm x 55.50 mm

Color :

Gray

Manufacturer :

Wago

Automotive :

No

Clamp width :

5mm

Contamination level :

3

AWG max. :

14

Stripping Length :

8mm ~ 9mm

HTS :

8536.90.40.00

Number of Positions/Contacts :

3

Height :

55.50mm

Number of Circuits :

1

Maximum Voltage Rating :

400V

Cross section (flexible) (min.) :

0.08mm²

Industrial packaging :

yes

Type :

Sensor Terminal Block

Cross section (inflexible) (max.) :

2.50mm²

Shell Material :

PA

Housing Color :

Gray

Gender :

Male

Product Status :

Active

Wire Gauge or Range - AWG :

12-28 AWG

Package :

Box

Shell Size :

-

Number of Contacts :

4

Current - IEC :

10 A

Stripping length (max.) :

9mm

No. of rows :

3

Number of Levels :

3

Fuse Type :

-

Material - Insulation :

Polyamide (PA66), Nylon 6/6

RoHS :

yes

Cross section (flexible) (max.) :

2.50mm²

Min. stripping length :

8mm

Nominal current - rounded value :

10A

ECCN (US) :

EAR99

Nominal voltage :

400V

Wire Gauge or Range - mm² :

0.08-2.5mm²

Mounting Type :

DIN Rail

Disconnect Type :

Disconnect Tab

Nominal current :

10A

Terminal - Width :

5.0mm

Cross section (inflexible) (min.) :

0.08mm²

Connection :

Pull spring

Approvals :

CSA, UR

AWG (min.) :

28

Number of Positions :

4

Note :

n/a

Termination Style :

Push In, Spring

Maximum Operating Temperature (°C) :

105

PPAP :

No

Minimum Operating Temperature (°C) :

-60

Number of Rows :

4

Maximum Current Rating (A) :

10

Termination Method :

Spring Clamp

Voltage - UL :

-

Content :

50pc(s)

Material Flammability Rating :

UL94 V-0
