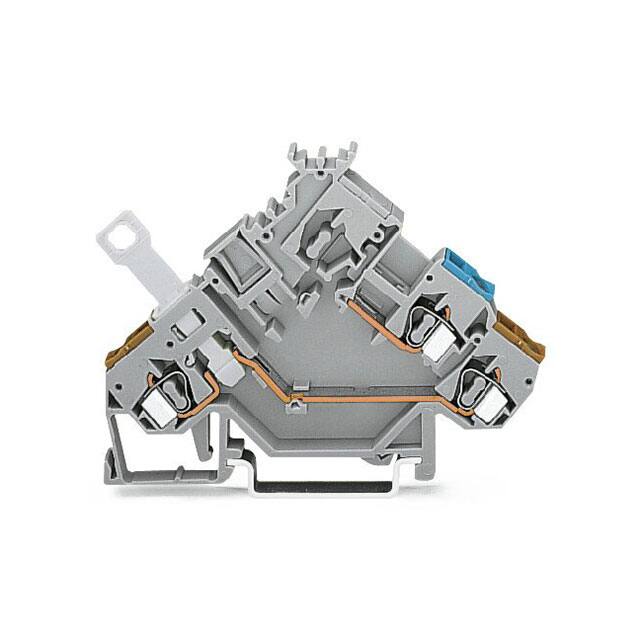

280-566

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Rated current In :

10

Connectable conductor cross section fine-strand with cable end sleeve :

0.25 - 1.5

Shell Size :

-

Length :

85

Number of Positions :

4

Termination Style :

Push In, Spring

ECCN (US) :

EAR99

RoHS :

yes

Stripping Length :

8mm ~ 9mm

Voltage - IEC :

-

Approvals :

CSA, UR

Series :

WINSTA MIDI

Gender :

Male

Height :

85

Automotive :

No

PPAP :

No

Flammability Rating :

UL94 V-0

Disconnect Type :

-

Number of Circuits :

1

Manufacturer :

Wago

Terminal - Width :

5.0mm

Type :

Sensor/Actuator Terminal Block

Termination Method :

Spring Clamp

Package :

Box

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Number of Contacts :

3

Mounting Type :

DIN Rail

Product Status :

Active

Note :

n/a

Maximum Operating Temperature (°C) :

105

Shell Material :

PA

Inflammability class of insulation material according to with UL94 :

V0

Mounting :

DIN Rail

Features :

LED, Resistor

HTS :

8536.90.40.00

Width :

5

Wire Gauge or Range - AWG :

12-28 AWG

Number of Levels :

3

Maximum Current Rating (A) :

10

Depth :

55.5

Wire Gauge or Range - mm² :

0.08-2.5mm²

Connectable conductor cross section multi-wired :

0.08 - 2.5

Fuse Type :

-

Current - IEC :

20 A

Connectable conductor cross section solid-core :

0.08 - 2.5

Minimum Operating Temperature (°C) :

-60

Voltage - UL :

-

Maximum Voltage Rating :

400V

Number of Positions/Contacts :

3

Color :

Gray

Material Flammability Rating :

UL94 V-0

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 2.5

Housing Color :

Gray

EU RoHS :

Compliant
