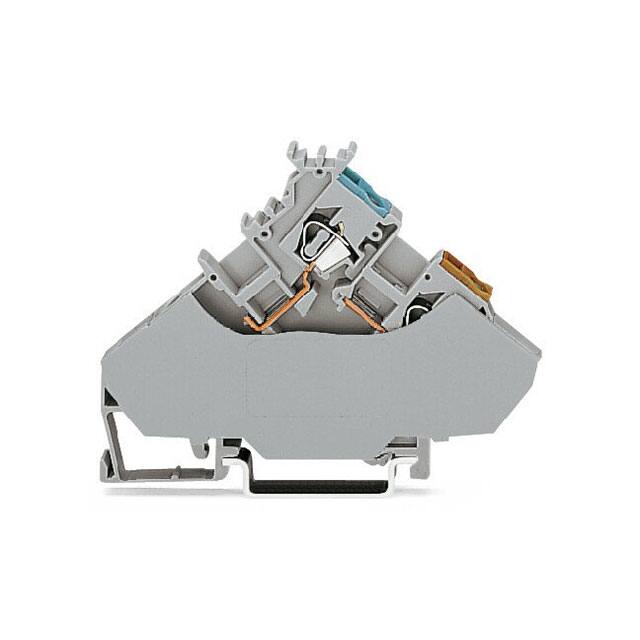

280-567

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Connectable conductor cross section multi-wired :

0.08 - 2.5

Voltage - IEC :

400V

Connection :

Pull spring

Cross section (flexible) (min.) :

0.08mm²

Industrial packaging :

yes

Content :

20pc(s)

Number of Contacts :

2

Gender :

FEMALE

ECCN (US) :

EAR99

Number of Rows :

2

Connectable conductor cross section solid-core :

0.08 - 2.5

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 2.5

Termination Method :

Spring Clamp

Disconnect Type :

-

Termination Style :

Push In, Spring

Contamination level :

3

Connectable conductor cross section fine-strand with cable end sleeve :

0.25 - 1.5

Automotive :

No

Current - IEC :

20 A

Dim :

(W x H) 6 mm x 55.50 mm

Features :

-

No. of rows :

2

Number of Circuits :

1

Voltage - UL :

-

Manufacturer :

Wago

Length :

80

Nominal current - rounded value :

20A

RoHS :

yes

Approvals :

CSA, UR

Number of Positions/Contacts :

3

Clamp width :

6mm

Pins per row :

1

Manufacturer part # :

280-567

Shell Size :

-

Number of Levels :

2

Stripping Length :

8mm ~ 9mm

Stripping length (max.) :

9mm

Product Status :

Active

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Minimum Operating Temperature (°C) :

-60

Package :

Box

Note :

n/a

Width :

6mm

Cross section (inflexible) (max.) :

2.50mm²

Housing Color :

Gray

Configuration :

L

Maximum Current Rating (A) :

20

Terminal - Width :

6.0mm

Maximum Operating Temperature (°C) :

105

Nominal voltage :

400V

AWG (min.) :

28

Inflammability class of insulation material according to with UL94 :

V0

Maximum Voltage Rating :

400V

Height :

55.50mm

Wire Gauge or Range - mm² :

0.08-2.5mm²

Fuse Type :

-

Mounting :

DIN Rail

PPAP :

No

Min. stripping length :

8mm

Wire Gauge or Range - AWG :

12-28 AWG

Series :

WINSTA MIDI

Rated current In :

20

Nominal current :

20A

Shell Material :

PA

Number of Positions :

2

Cross section (flexible) (max.) :

2.50mm²

Color :

Gray

HTS :

8536.90.40.00

AWG max. :

14

Type :

Sensor Terminal Block

Material Flammability Rating :

UL94 V-0

Cross section (inflexible) (min.) :

0.08mm²

Depth :

55.5

EU RoHS :

Compliant

Mounting Type :

DIN Rail
