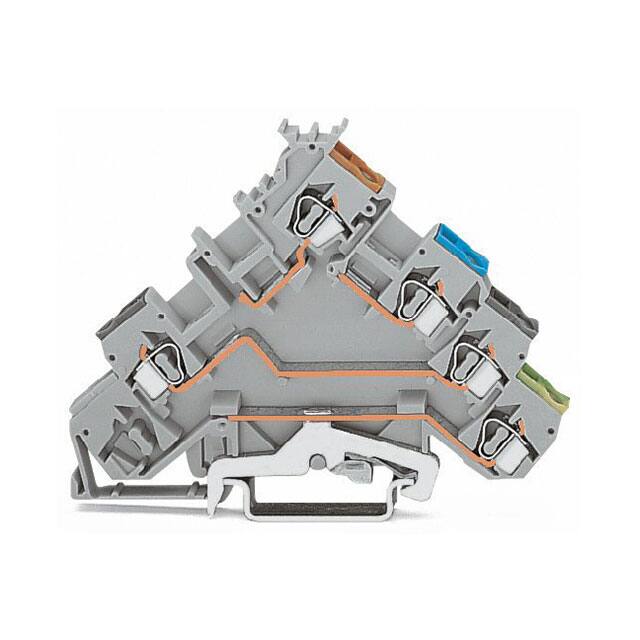

280-570

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Mounting Type :

DIN Rail

Current - IEC :

20 A

Gender :

Male

Color :

Gray

Nominal current :

20A

RoHS :

yes

Contamination level :

3

Manufacturer :

Wago

Number of Contacts :

5

Width :

5mm

Stripping Length :

8mm ~ 9mm

Clamp width :

5mm

Number of Levels :

4; 1 Grounded

Automotive :

No

Stripping length (max.) :

9mm

Terminal - Width :

5.0mm

Nominal current - rounded value :

20A

ECCN (US) :

EAR99

Cross section (inflexible) (min.) :

0.08mm²

Shell Size :

-

Type :

Terminal Block

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 2.5

PPAP :

No

AWG (min.) :

28

Note :

n/a

Maximum Current Rating (A) :

20

Manufacturer part # :

280-570

Industrial packaging :

yes

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Wire Gauge or Range - AWG :

12-28 AWG

Number of Positions/Contacts :

3

Approvals :

CSA, UR

Disconnect Type :

-

Cross section (flexible) (min.) :

0.08mm²

Voltage - UL :

-

Nominal voltage :

400V

Rated current In :

20

Number of Rows :

4

Connectable conductor cross section multi-wired :

0.08 - 2.5

Dim :

(W x H) 5 mm x 63.50 mm

Height :

63.50mm

No. of rows :

4

Inflammability class of insulation material according to with UL94 :

V0

Cross section (inflexible) (max.) :

2.50mm²

HTS :

8536.90.40.00

Series :

WINSTA MIDI

Termination Style :

Push In, Spring

Min. stripping length :

8mm

Packaging :

Box

Fuse Type :

-

Package :

Box

Current Rating :

20 A

SVHC Exceeds Threshold :

yes

SVHC :

yes

Max Current Rating :

20 A

Voltage - IEC :

400V

Cross section (flexible) (max.) :

2.50mm²

Housing Color :

Gray

Connectable conductor cross section fine-strand with cable end sleeve :

0.25 - 1.5

Configuration :

L

Connectable conductor cross section solid-core :

0.08 - 2.5

Content :

50pc(s)

Depth :

63.5

Number of Pins :

5

Connection :

Pull spring

Material Flammability Rating :

UL94 V-0

Mounting :

T DIN RAIL

Number of Circuits :

4

Flammability Rating :

UL94 V-0

Length :

90.5

Number of Positions :

5

Features :

+ PG connector

AWG max. :

14

EU RoHS :

Compliant with Exemption

Product Status :

Active

Wire Gauge or Range - mm² :

0.08-2.5mm²

Shell Material :

PA
