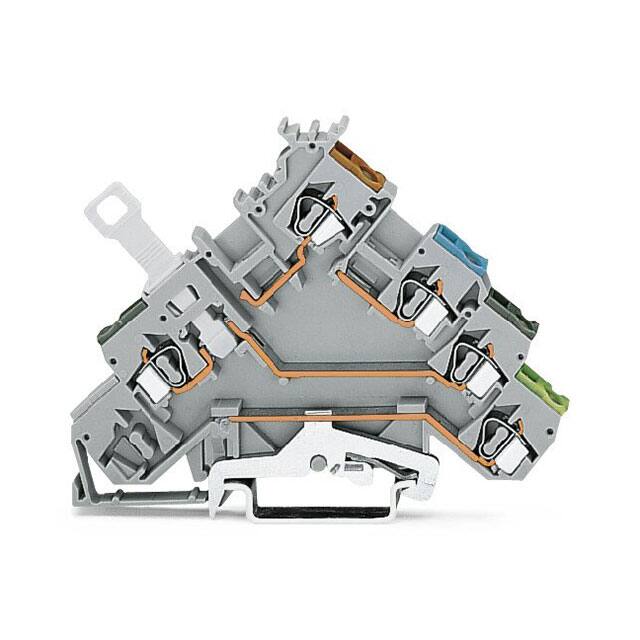

280-573

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Cross section (flexible) (max.) :

2.50mm²

EU RoHS :

Compliant with Exemption

Approvals :

CSA, UR

Number of Levels :

4; 1 Grounded

Maximum Current Rating (A) :

10

Material Flammability Rating :

UL94 V-0

Termination Style :

Push In, Spring

Shell Material :

PA

Nominal current :

10A

Min. stripping length :

8mm

Number of Rows :

5

Voltage - UL :

-

Number of Positions/Contacts :

3

Configuration :

L

Automotive :

No

Disconnect Type :

-

Height :

63.50mm

Manufacturer part # :

280-573

Width :

5mm

Nominal voltage :

400V

Number of Contacts :

5

RoHS :

yes

Clamp width :

5mm

ECCN (US) :

EAR99

Maximum Operating Temperature (°C) :

105

No. of rows :

4

Contamination level :

3

Manufacturer :

Wago

HTS :

8536.90.40.00

AWG max. :

14

Dim :

(W x H) 5 mm x 63.50 mm

PPAP :

No

Minimum Operating Temperature (°C) :

-60

Fuse Type :

-

Shell Size :

-

Series :

WINSTA MIDI

Current - IEC :

10 A

Number of Circuits :

1

AWG (min.) :

28

Wire Gauge or Range - mm² :

0.08-2.5mm²

Cross section (inflexible) (max.) :

2.50mm²

SVHC :

yes

Product Status :

Active

SVHC Exceeds Threshold :

yes

Content :

50pc(s)

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Note :

n/a

Maximum Voltage Rating :

400V

Nominal current - rounded value :

10A

Voltage - IEC :

400V

Gender :

Male

Type :

Sensor Terminal Block

Wire Gauge or Range - AWG :

12-28 AWG

Features :

+ PG connector

Terminal - Width :

5.0mm

Mounting :

DIN Rail

Stripping Length :

8mm ~ 9mm

Cross section (flexible) (min.) :

0.08mm²

Industrial packaging :

yes

Termination Method :

Spring Clamp

Housing Color :

Gray

Stripping length (max.) :

9mm

Package :

Box

Mounting Type :

DIN Rail

Cross section (inflexible) (min.) :

0.08mm²

Connection :

Pull spring

Color :

Gray

Number of Positions :

5
