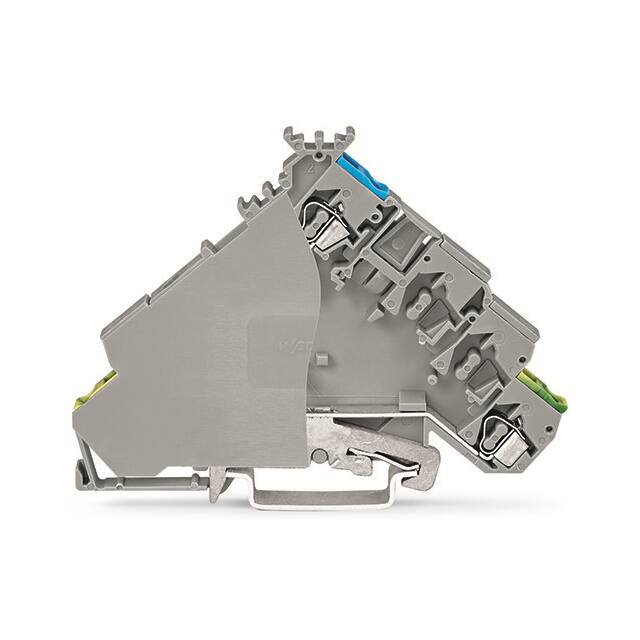

280-578

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Automotive :

No

Dim :

(W x H) 6 mm x 63.50 mm

Number of Positions/Contacts :

3

ECCN (US) :

EAR99

No. of rows :

2

Manufacturer part # :

280-578

Stripping length (max.) :

9mm

Stripping Length :

8mm ~ 9mm

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 2.5

Termination Style :

Push In, Spring

Nominal current - rounded value :

20A

Height :

63.50mm

Current - IEC :

20 A

EU RoHS :

Compliant with Exemption

Shell Size :

-

SVHC :

yes

Material Flammability Rating :

UL94 V-0

Series :

WINSTA MIDI

Terminal - Width :

6.0mm

Depth :

63.5

Maximum Current Rating (A) :

20

Note :

n/a

Width :

6mm

Wire Gauge or Range - AWG :

12-28 AWG

Min. stripping length :

8mm

Inflammability class of insulation material according to with UL94 :

V0

Connection :

Pull spring

AWG (min.) :

28

Nominal voltage :

400V

Clamp width :

6mm

Wire Gauge or Range - mm² :

0.08-2.5mm²

AWG max. :

14

Cross section (inflexible) (min.) :

0.08mm²

Disconnect Type :

-

Packaging :

Box

Voltage - IEC :

400V

Product Status :

Active

PPAP :

No

Rated current In :

20

SVHC Exceeds Threshold :

yes

Configuration :

L

Length :

90.5

Contamination level :

3

Features :

+ PG connector

Fuse Type :

-

Connectable conductor cross section fine-strand with cable end sleeve :

0.25 - 1.5

Type :

Sensor/Actuator Terminal Block

Minimum Operating Temperature (°C) :

-60

Gender :

Male

Color :

Gray

Housing Color :

Gray

Number of Levels :

2; 1 Grounded

Content :

20pc(s)

Voltage - UL :

-

Nominal current :

20A

Connectable conductor cross section solid-core :

0.08 - 2.5

HTS :

8536.90.40.00

Cross section (flexible) (max.) :

2.50mm²

Maximum Voltage Rating :

400V

Industrial packaging :

yes

Maximum Operating Temperature (°C) :

105

Number of Circuits :

1

Number of Contacts :

3

Package :

Box

Cross section (inflexible) (max.) :

2.50mm²

Material - Insulation :

Polyamide (PA66), Nylon 6/6

RoHS :

yes

Termination Method :

Spring Clamp

Mounting :

DIN Rail

Approvals :

CSA, UR

Manufacturer :

Wago

Mounting Type :

DIN Rail

Cross section (flexible) (min.) :

0.08mm²

Connectable conductor cross section multi-wired :

0.08 - 2.5

Shell Material :

PA

Number of Positions :

3
