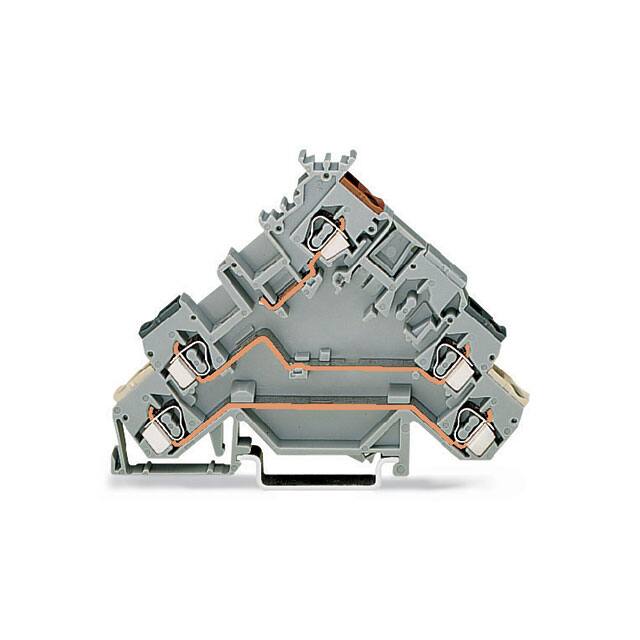

280-583

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Min. stripping length :

8mm

Length :

90.5

Width :

5mm

Nominal current - rounded value :

20A

Housing Color :

Gray

Mounting :

DIN Rail

HTS :

8536.69.40.51

Material Flammability Rating :

UL94 V-0

Rated current In :

20

Stripping Length :

8mm ~ 9mm

Configuration :

L

Automotive :

No

Cross section (flexible) (max.) :

2.50mm²

Industrial packaging :

yes

Cross section (inflexible) (max.) :

2.50mm²

Maximum Operating Temperature (°C) :

105

Number of Contacts :

5

Manufacturer :

Wago

Current - IEC :

20 A

Cross section (inflexible) (min.) :

0.08mm²

EU RoHS :

Compliant

Voltage - UL :

-

Mounting Type :

DIN Rail

Cross section (flexible) (min.) :

0.08mm²

No. of rows :

3

Connectable conductor cross section fine-strand with cable end sleeve :

0.25 - 1.5

Manufacturer part # :

280-583

Inflammability class of insulation material according to with UL94 :

V0

RoHS :

yes

Type :

Sensor/Actuator Terminal Block

Height :

63.50mm

Product Status :

Active

Package :

Box

Shell Size :

-

Content :

50pc(s)

PPAP :

No

Disconnect Type :

-

AWG max. :

14

Voltage - IEC :

400V

Fuse Type :

-

Color :

Gray

Note :

n/a

Contamination level :

3

Nominal current :

20A

Gender :

Female/Male

Wire Gauge or Range - mm² :

0.08-2.5mm²

AWG (min.) :

28

Maximum Voltage Rating :

400V

Connection :

Pull spring

Maximum Current Rating (A) :

20

Number of Positions :

5

Shell Material :

PA

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Nominal voltage :

400V

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 2.5

Minimum Operating Temperature (°C) :

-60

ECCN (US) :

EAR99

Connectable conductor cross section solid-core :

0.08 - 2.5

Number of Positions/Contacts :

5

Connectable conductor cross section multi-wired :

0.08 - 2.5

Clamp width :

5mm

Depth :

63.5

Termination Method :

Spring Clamp

Series :

WINSTA MIDI

Approvals :

CSA, UR

Termination Style :

Push In, Spring

Wire Gauge or Range - AWG :

12-28 AWG

Stripping length (max.) :

9mm

Terminal - Width :

5.0mm

Number of Levels :

3

Features :

-

Dim :

(W x H) 5 mm x 63.50 mm

Number of Circuits :

1
