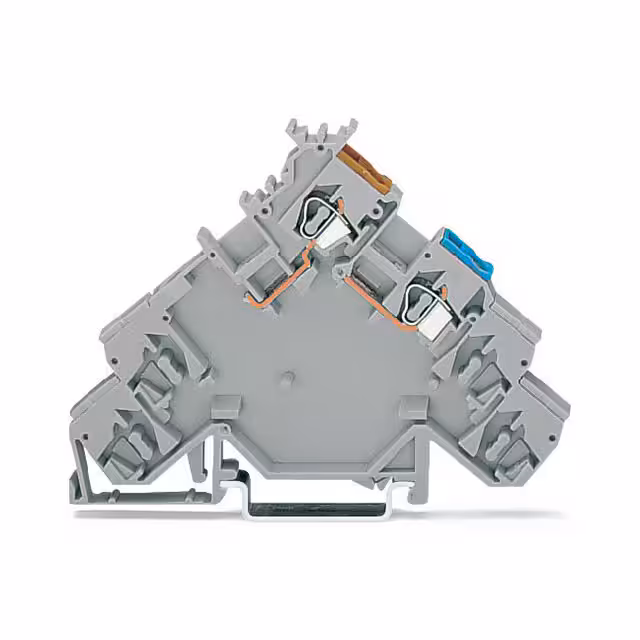

280-584

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Stripping length (max.) :

9mm

Clamp width :

5mm

Connectable conductor cross section fine-strand with cable end sleeve :

0.25 - 1.5

Manufacturer :

Wago

Termination Method :

Spring Clamp

Housing Color :

Gray

Height :

63.50mm

Stripping Length :

8mm ~ 9mm

Color :

Gray

Connectable conductor cross section solid-core :

0.08 - 2.5

Current Rating (Max) :

20(A)

Number of Contact Rows :

2

Number of Contacts :

2

Wire Gauge :

12-28(AWG)

Inflammability class of insulation material according to with UL94 :

V0

Type :

Sensor Terminal Block

Connection :

Pull spring

Mounting Style :

Din-Rail

Shell Size :

-

Features :

-

Nominal current - rounded value :

20A

Voltage - IEC :

400V

Termination Style :

Push In, Spring

Number of Circuits :

1

Min. stripping length :

8mm

Tradename :

CAGE CLAMP?

ECCN (US) :

EAR99

Automotive :

No

HTS :

8536.90.40.00

Series :

WINSTA MIDI

Terminal - Width :

5.0mm

Number of Positions :

2

Package :

Box

Current - IEC :

20 A

Maximum Current Rating (A) :

20

Connectable conductor cross section multi-wired :

0.08 - 2.5

Rated current In :

20

RoHS :

yes

Length :

90.5

Cross section (flexible) (max.) :

2.50mm²

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Maximum Operating Temperature (°C) :

105

Material Flammability Rating :

UL94 V-0

Nominal voltage :

400V

Cross section (flexible) (min.) :

0.08mm²

Number of Positions/Contacts :

5

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 2.5

Gender :

F

Manufacturer part # :

280-584

Product Status :

Active

Depth :

63.5

Width :

5mm

Body Orientation :

RIGHT ANGLE

Number of Rows :

2

AWG max. :

14

Shell Material :

PA

Fuse Type :

-

Contamination level :

3

Cross section (inflexible) (min.) :

0.08mm²

Minimum Operating Temperature (°C) :

-60

Contact Material :

Electrolytic Copper

AWG (min.) :

28

Contact Pitch (mm) :

Not Required(mm)

Content :

10pc(s)

Nominal current :

20A

Disconnect Type :

-

Cross section (inflexible) (max.) :

2.50mm²

EU RoHS :

Compliant

Mounting :

DIN Rail

PPAP :

No

Housing Material :

Polyamide 6/6

Wire Gauge or Range - mm² :

0.08-2.5mm²

Wire Gauge or Range - AWG :

12-28 AWG

No. of rows :

2

Packaging :

Box

Number of Levels :

2

Voltage - UL :

-

Operating Voltage (Max) :

400V

Contact Plating :

Tin

Note :

n/a

Dim :

(W x H) 5 mm x 63.50 mm

Industrial packaging :

yes

Configuration :

L

Mounting Type :

DIN Rail

Maximum Voltage Rating :

400V

Rad Hardened :

No
