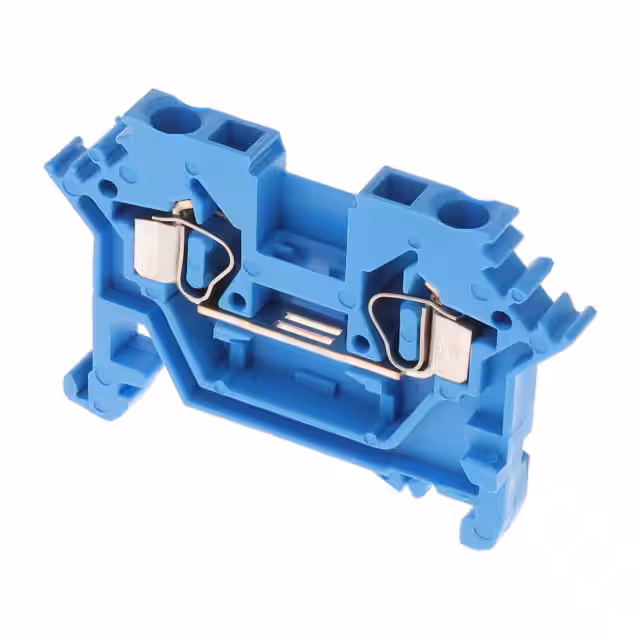

280-602

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Number of Rows :

1

Mounting Type :

DIN Rail

Gender :

Female/Male

Disconnect Type :

-

Manufacturer :

Wago

Width :

5mm

Voltage - IEC :

800V

Inflammability class of insulation material according to with UL94 :

V0

Depth :

28

AWG (min.) :

28

Number of Positions :

2

Fuse Type :

-

Type :

Standard Block

Height :

28mm

Nominal current :

24A

Material Flammability Rating :

UL94 V-0

Cross section (inflexible) (min.) :

0.08mm²

Contamination level :

3

Connection :

Pull spring

Termination Style :

Push In, Spring

Number of Levels :

1

Wire Gauge or Range - AWG :

12-28 AWG

Current Rating :

24 A

Terminal - Width :

5.0mm

Number of Pins :

2

Current - IEC :

24 A

Color :

Blue

No. of rows :

1

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Shell Size :

-

Manufacturer part # :

280-602

Shell Material :

PA

Nominal current - rounded value :

24A

Product Status :

Active

Pins per row :

2

Wire Gauge or Range - mm² :

0.08-2.5mm²

Stripping Length :

8mm ~ 9mm

Note :

n/a

Min. stripping length :

8mm

Configuration :

N

Cross section (inflexible) (max.) :

2.50mm²

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 2.5

Connectable conductor cross section multi-wired :

0.08 - 2.5

Flammability Rating :

UL94 V-0

RoHS :

yes

Cross section (flexible) (max.) :

2.50mm²

Number of Contacts :

2

Rated current In :

24

Number of Positions/Contacts :

5

Voltage - UL :

-

Content :

100pc(s)

Length :

50

Nominal voltage :

800V

Connectable conductor cross section solid-core :

0.08 - 2.5

Stripping length (max.) :

9mm

Clamp width :

5mm

Dim :

(W x H) 5 mm x 28 mm

Series :

WINSTA MIDI

Cross section (flexible) (min.) :

0.08mm²

Industrial packaging :

yes

AWG max. :

14

Features :

Complies with ATEX Ex I standards

Package :

Box
