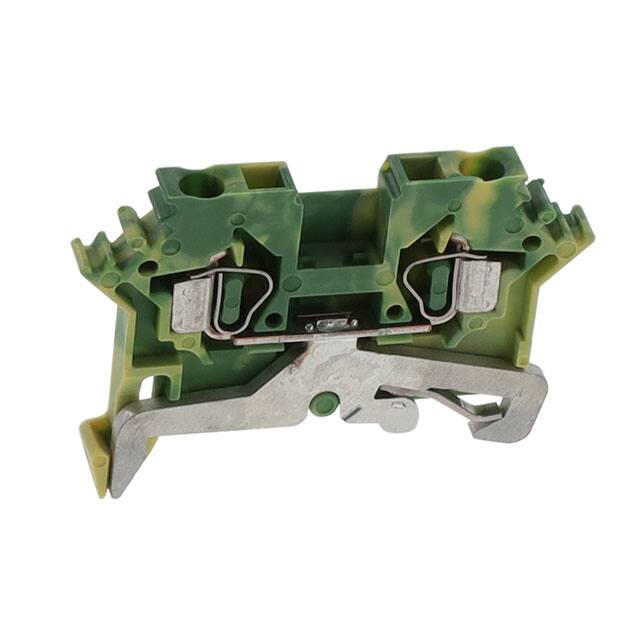

280-607

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Base Product Number :

280

Cross section (inflexible) (max.) :

2.50mm²

Manufacturer part # :

280-607

Gender :

Female/Male

Wire Gauge or Range - mm² :

0.08-2.5mm²

Pins per row :

2

Length :

50

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Terminal - Width :

5.0mm

Number of Levels :

1

Rated Current :

-

RoHS :

yes

AWG (min.) :

28

Product Status :

Active

Number of Positions/Contacts :

5

Shell Material :

PA

Features :

-

Wire Gauge or Range - AWG :

12-28 AWG

Height :

28mm

Min. stripping length :

8mm

Cross section (flexible) (max.) :

2.50mm²

Cross section (flexible) (min.) :

0.08mm²

Material Flammability Rating :

-

Width :

5mm

Configuration :

Terre

Voltage - UL :

-

Connectable conductor cross section multi-wired :

0.08 - 2.5

AWG max. :

14

Type :

280-607

Mounting Type :

DIN Rail

Stripping Length :

8mm ~ 9mm

Color :

Green, Yellow

Rated Voltage :

-

Inflammability class of insulation material according to with UL94 :

V0

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 2.5

Industrial packaging :

yes

Connectable conductor cross section solid-core :

0.08 - 2.5

Content :

100pc(s)

Termination Style :

Push In, Spring

Package :

Bulk

Fuse Type :

-

Number of Positions :

2

Cross section (inflexible) (min.) :

0.08mm²

Stripping length (max.) :

9mm

Connection :

Pull spring

Depth :

28

Voltage - IEC :

-

Shell Size :

-

Dim :

(W x H) 5 mm x 28 mm

Clamp width :

5mm

No. of rows :

1

Series :

WINSTA MIDI

Disconnect Type :

-

Note :

n/a

Manufacturer :

Wago
