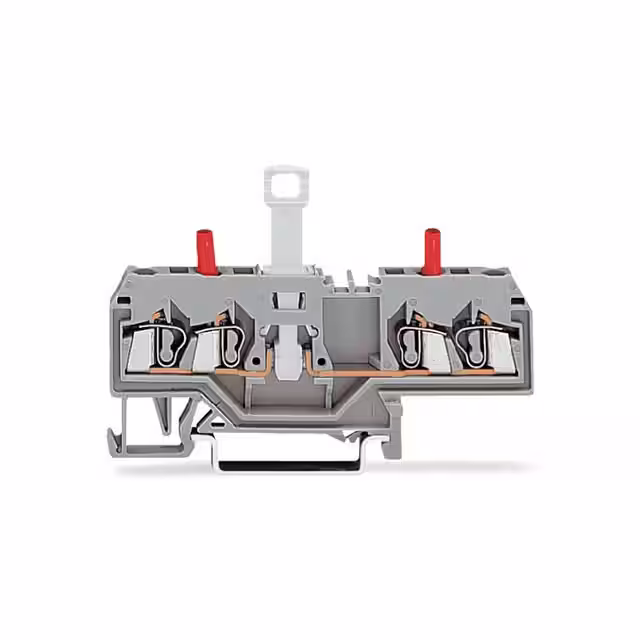

280-649

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Pins per row :

2

Number of Contacts :

2

Height :

52.50mm

Number of Levels :

1

Shell Material :

PA

Cross section (inflexible) (min.) :

0.08mm²

Number of Positions/Contacts :

5

Shell Size :

-

Wire Gauge or Range - mm² :

0.08-2.5mm²

Current Rating :

10 A

Contamination level :

3

Terminal - Width :

5.0mm

Industrial packaging :

yes

Maximum Operating Temperature (°C) :

105

Nominal voltage :

400V

Nominal current :

10A

Number of Rows :

2

Min. stripping length :

8mm

Nominal current - rounded value :

10A

ECCN (US) :

EAR99

Termination Method :

Spring Clamp

Maximum Current Rating (A) :

10

AWG max. :

14

Cross section (flexible) (min.) :

0.08mm²

Mounting :

DIN Rail

Flammability Rating :

UL94 V-0

Package :

Box

No. of rows :

1

EU RoHS :

Compliant

Content :

50pc(s)

Cross section (inflexible) (max.) :

2.50mm²

Width :

5mm

PPAP :

No

Voltage - UL :

-

Clamp width :

5mm

Automotive :

No

Dim :

(W x H) 5 mm x 52.50 mm

Maximum Voltage Rating :

400V

Gender :

Male

Stripping length (max.) :

9mm

Note :

n/a

Series :

WINSTA MIDI

Packaging :

Box

Voltage - IEC :

400V

Color :

Gray

Features :

+ separator,+ test option

Type :

Disconnect and Test Disconnect Terminal Block

HTS :

8536.90.40.00

Number of Pins :

2

Fuse Type :

-

Wire Gauge or Range - AWG :

12-28 AWG

RoHS :

yes

Minimum Operating Temperature (°C) :

-60

Disconnect Type :

Switch, Knife

Connection :

Pull spring

Number of Circuits :

1

Cross section (flexible) (max.) :

2.50mm²

AWG (min.) :

28

Stripping Length :

8mm ~ 9mm

Manufacturer :

Wago

Number of Positions :

4

Termination Style :

Push In, Spring

Configuration :

L

Material Flammability Rating :

UL94 V-0

Manufacturer part # :

280-649

Current - IEC :

10 A

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Product Status :

Active

Mounting Type :

DIN Rail

Housing Color :

Gray
