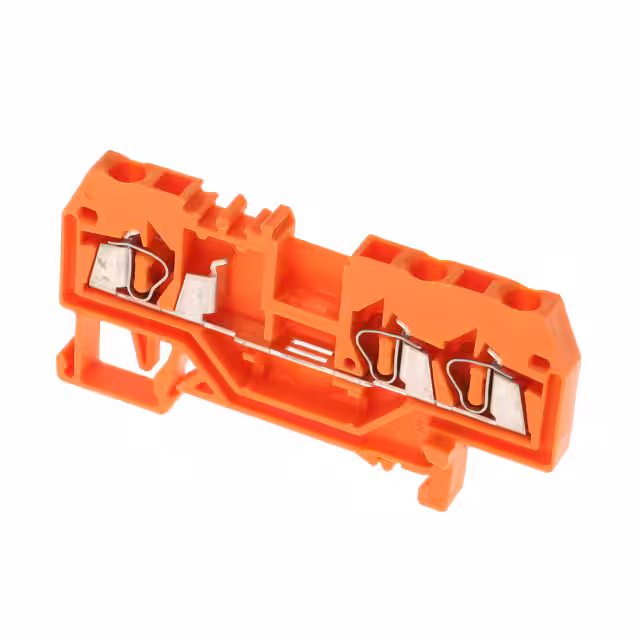

280-650

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Current - IEC :

24 A

Mounting Style :

T DIN RAIL

Voltage - IEC :

800V

Connection :

Pull spring

Mounting Type :

DIN Rail

Industrial packaging :

yes

Manufacturer part # :

280-650

Packaging :

Box

Width :

5mm

Package :

Box

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Number of Positions/Contacts :

5

ECCN (US) :

EAR99

Nominal voltage :

800V

Note :

n/a

Nominal current - rounded value :

24A

Material Flammability Rating :

UL94 V-0

Disconnect Type :

-

PPAP :

No

Manufacturer :

Wago

Number of Levels :

1

Product Status :

Active

Pins per row :

3

Fuse Type :

-

RoHS :

yes

Number of Contact Rows :

3

Shell Size :

-

Cross section (inflexible) (max.) :

2.50mm²

Operating Voltage (Max) :

800V

AWG (min.) :

28

Cross section (inflexible) (min.) :

0.08mm²

Wire Gauge :

12-28(AWG)

Weight :

7.573g

Current Rating (Max) :

24(A)

Mounting :

T DIN RAIL

EU RoHS :

Compliant

Stripping Length :

8mm ~ 9mm

No. of rows :

1

Height :

28mm

Automotive :

No

Maximum Current Rating (A) :

24

Nominal current :

24A

Series :

WINSTA MIDI

Terminal - Width :

5.0mm

Number of Positions :

3

Number of Contacts :

3

Housing Color :

Orange

Contact Pitch (mm) :

Not Required(mm)

Type :

Terminal Block

Cross section (flexible) (max.) :

2.50mm²

Content :

100pc(s)

Features :

-

Cross section (flexible) (min.) :

0.08mm²

Shell Material :

PA

Wire Gauge or Range - AWG :

12-28 AWG

Number of Circuits :

1

HTS :

8536.90.40.00

Rad Hardened :

No

Voltage - UL :

-

AWG max. :

14

Color :

Orange

Stripping length (max.) :

9mm

Wire Gauge or Range - mm² :

0.08-2.5mm²

Maximum Voltage Rating :

800V

Gender :

F

Approvals :

CSA, UR

Termination Style :

Push In, Spring

Clamp width :

5mm

Dim :

(W x H) 5 mm x 28 mm

Number of Rows :

3

Min. stripping length :

8mm
