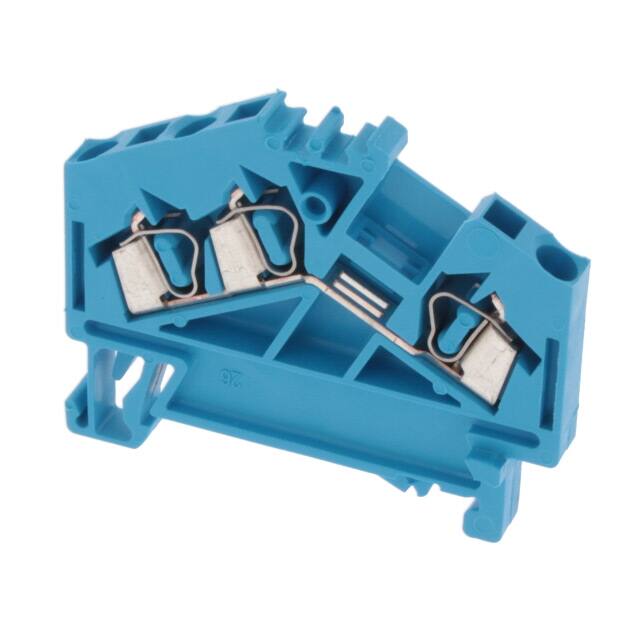

280-651

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Number of Positions/Contacts :

5

Mounting Type :

DIN Rail

Min. stripping length :

8mm

Packaging :

Box

RoHS :

yes

Product Length (mm) :

50.5(mm)

Number of Contacts :

3(POS)

Material Flammability Rating :

-

Stripping length (max.) :

9mm

Termination Style :

Push In, Spring

Wire Gauge :

12-28(AWG)

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 2.5

Terminal - Width :

5.0mm

Approvals :

CSA, UR

Operating Voltage (Max) :

800V

Gender :

Male

Disconnect Type :

-

Rad Hardened :

No

Cross section (flexible) (max.) :

2.50mm²

Industrial packaging :

yes

Contamination level :

3

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Product Depth (mm) :

5(mm)

Package :

Bulk

Rated Current :

24A

Series :

WINSTA MIDI

Product Height (mm) :

36.5(mm)

Base Product Number :

280

Voltage - IEC :

800V

Type :

Standard Block

Rated current In :

24

Inflammability class of insulation material according to with UL94 :

V0

Fuse Type :

-

Clamp width :

5mm

Wire Gauge or Range - AWG :

12-28 AWG

Features :

Complies with ATEX Ex I standards

Manufacturer part # :

280-651

Configuration :

N

Dim :

(W x H) 5 mm x 36.50 mm

Connection :

Pull spring

Cross section (flexible) (min.) :

0.08mm²

Note :

n/a

Pins per row :

3

Housing Color :

Blue

Cross section (inflexible) (max.) :

2.50mm²

Nominal voltage :

800V

Stripping Length :

8mm ~ 9mm

Height :

36.50mm

Current - IEC :

24 A

Nominal current :

24A

Shell Size :

-

Mounting Style :

T DIN RAIL

AWG (min.) :

28

Wire Gauge or Range - mm² :

0.08-2.5mm²

Content :

100pc(s)

Number of Contact Rows :

3

Length :

50.5

Number of Circuits :

1

Shell Material :

PA

Depth :

36.5

Connectable conductor cross section solid-core :

0.08 - 2.5

Rated Voltage :

800V

AWG max. :

14

Color :

Blue

Current Rating (Max) :

24(A)

Number of Levels :

1

Connectable conductor cross section multi-wired :

0.08 - 2.5

Nominal current - rounded value :

24A

Width :

5mm

No. of rows :

1

Manufacturer :

Wago

Product Status :

Active

Number of Positions :

3

Voltage - UL :

-

Cross section (inflexible) (min.) :

0.08mm²
