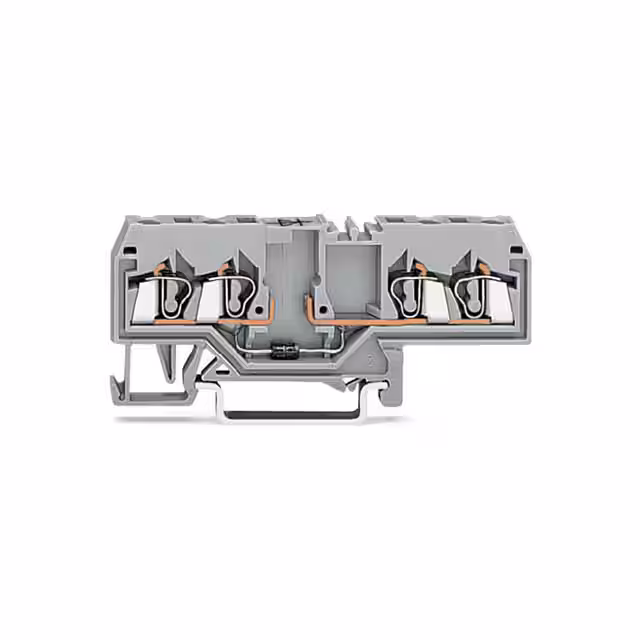

280-655/281-411

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Flammability Rating :

UL94 V-0

Cross section (flexible) (min.) :

0.08mm²

Dim :

(W x H) 5 mm x 28 mm

Nominal voltage :

250V

Voltage - IEC :

-

Connectable conductor cross section solid-core :

0.08 - 2.5

Color :

Gray

Number of Positions :

4

Product Status :

Active

Cross section (flexible) (max.) :

2.50mm²

Depth :

28

Min. stripping length :

8mm

Stripping length (max.) :

9mm

Series :

-

Connection :

Pull spring

Maximum Voltage Rating :

250V

Manufacturer part # :

280-655/281-411

EU RoHS :

Compliant with Exemption

AWG max. :

14

Automotive :

No

Stripping Length :

8mm ~ 9mm

PPAP :

No

Rated current In :

0.5

Number of Circuits :

1

Wire Gauge or Range - mm² :

0.08-2.5mm²

Voltage - UL :

-

Maximum Operating Temperature (°C) :

105

Number of Pins :

4

Number of Contacts :

4

Length :

75

Inflammability class of insulation material according to with UL94 :

V0

Maximum Current Rating (A) :

0.5

Manufacturer :

Wago

Material Flammability Rating :

UL94 V-0

Width :

5mm

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Number of Rows :

4

Connectable conductor cross section multi-wired :

0.08 - 2.5

Minimum Operating Temperature (°C) :

-60

Mounting Type :

DIN Rail

Current Rating :

500 mA

ECCN (US) :

EAR99

Type :

Diode Terminal Block

Number of Levels :

1

Wire Gauge or Range - AWG :

14-28 AWG

Cross section (inflexible) (min.) :

0.08mm²

Current - IEC :

500 mA

Industrial packaging :

yes

HTS :

8536.90.40.00

Nominal current - rounded value :

500mA

Features :

+ 1 diode

Package :

Box

Configuration :

L

Disconnect Type :

-

Height :

28mm

Fuse Type :

-

RoHS :

yes

Cross section (inflexible) (max.) :

2.50mm²

Nominal current :

0.5A

Terminal - Width :

5.0mm

Termination Method :

Spring Clamp

Mounting :

DIN Rail

Termination Style :

Push In, Spring

AWG (min.) :

28

Content :

100pc(s)

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 2.5

Housing Color :

Gray

No. of rows :

1

Pins per row :

4

Clamp width :

5mm
