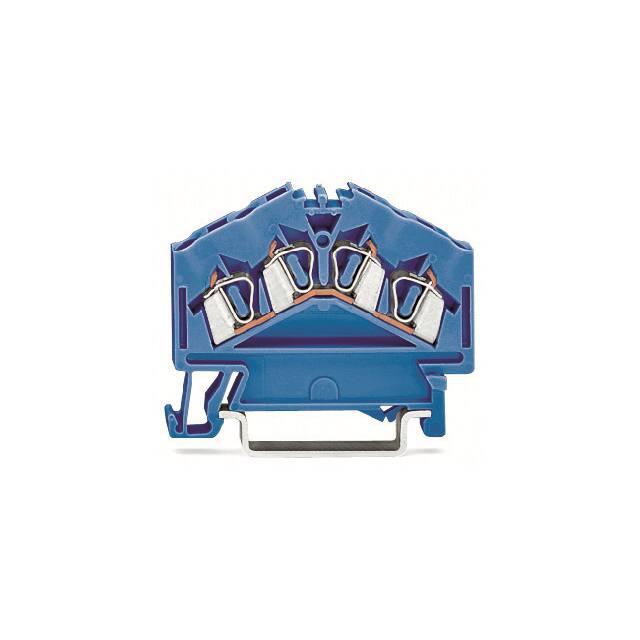

280-656

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Wire Gauge or Range - AWG :

12-28 AWG

Number of Pins :

4

Voltage - UL :

-

Height :

36.50mm

Type :

Standard Block

Mounting Type :

DIN Rail

Cross section (flexible) (min.) :

0.08mm²

Contamination level :

3

Cross section (inflexible) (min.) :

0.08mm²

Termination Style :

Push In, Spring

Nominal voltage :

800V

Nominal current :

24A

Color :

Blue

Number of Rows :

1

Connection :

Pull spring

Features :

Complies with ATEX Ex I standards

Disconnect Type :

-

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Material Flammability Rating :

UL94 V-0

Cross section (inflexible) (max.) :

2.50mm²

Product Status :

Active

Shell Material :

PA

Min. stripping length :

8mm

Automotive :

Unknown

Stripping Length :

8mm ~ 9mm

Number of Contacts :

4

Voltage - IEC :

800V

Shell Size :

-

Dim :

(W x H) 5 mm x 36.50 mm

Clamp width :

5mm

AWG (min.) :

28

Cross section (flexible) (max.) :

2.50mm²

Note :

n/a

Series :

WINSTA MIDI

Current Rating :

24 A

No. of rows :

1

Manufacturer :

Wago

Number of Levels :

1

ECCN (US) :

EAR99

Packaging :

Box

Nominal current - rounded value :

24A

Terminal - Width :

5.0mm

Gender :

Female/Male

Wire Gauge or Range - mm² :

0.08-2.5mm²

Number of Positions/Contacts :

5

PPAP :

Unknown

HTS :

8536.90.40.00

Fuse Type :

-

AWG max. :

14

Stripping length (max.) :

9mm

Industrial packaging :

yes

Number of Positions :

4

Width :

5mm

Flammability Rating :

UL94 V-0

Pins per row :

4

Number of Circuits :

1

Content :

100pc(s)

Configuration :

N

RoHS :

yes

Current - IEC :

24 A

EU RoHS :

Compliant

Manufacturer part # :

280-656
