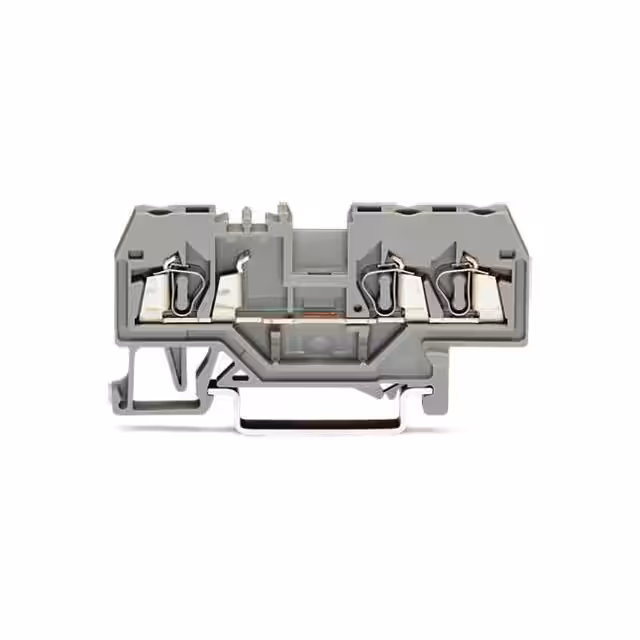

280-672

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Number of Levels :

1

Content :

100pc(s)

Number of Positions :

4

Inflammability class of insulation material according to with UL94 :

V0

Contamination level :

3

RoHS :

yes

Termination Style :

Push In, Spring

Mounting :

DIN Rail

Rated current In :

24

Mounting Type :

DIN Rail

Automotive :

No

Length :

64

Shell Material :

PA

Width :

5mm

Pins per row :

3

HTS :

8536.90.40.00

Fuse Type :

-

Manufacturer part # :

280-672

Housing Color :

Yellow

Terminal - Width :

5.0mm

AWG (min.) :

28

Min. stripping length :

8mm

Series :

WINSTA MIDI

AWG max. :

14

Flammability Rating :

UL94 V-0

Current - IEC :

24 A

Shell Size :

-

Type :

Terminal Block

Color :

Yellow

Maximum Voltage Rating :

800V

Stripping length (max.) :

9mm

Wire Gauge or Range - mm² :

0.08-2.5mm²

Connectable conductor cross section solid-core :

0.08 - 2.5

Wire Gauge or Range - AWG :

12-28 AWG

Material Flammability Rating :

UL94 V-0

Nominal current - rounded value :

24A

Approvals :

CSA, UR

PPAP :

No

Stripping Length :

8mm ~ 9mm

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Disconnect Type :

-

Connectable conductor cross section fine-strand without cable end sleeve :

0.08 - 2.5

Clamp width :

5mm

Voltage - IEC :

800V

No. of rows :

1

Height :

28mm

Note :

n/a

Cross section (inflexible) (max.) :

2.50mm²

Nominal current :

24A

Current Rating :

24 A

Number of Rows :

3

Number of Circuits :

1

Number of Contacts :

3

Packaging :

Box

Features :

-

Connectable conductor cross section multi-wired :

0.08 - 2.5

Gender :

Female/Male

Nominal voltage :

800V

Industrial packaging :

yes

Package :

Box

Maximum Operating Temperature (°C) :

105

Product Status :

Active

Cross section (inflexible) (min.) :

0.08mm²

Manufacturer :

Wago

ECCN (US) :

EAR99

Dim :

(W x H) 5 mm x 28 mm

Depth :

28

Connection :

Pull spring

Cross section (flexible) (min.) :

0.08mm²

EU RoHS :

Compliant

Number of Positions/Contacts :

5

Minimum Operating Temperature (°C) :

-60

Cross section (flexible) (max.) :

2.50mm²

Maximum Current Rating (A) :

24

Voltage - UL :

-

Number of Pins :

3
